1208*800 LCD Screen Module 12.1 Inch Kyocera TCG121WXLPAPNN-AN20
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG121WXLPAPNN-AN20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG121WXLPAPNN-AN20 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
| Bezel Opening: | 264.1(W)×166.2(H) Mm | Outline Size: | 277.7(W)×182.5(H)(D) Mm |
| Mass: | 680g (Typ.) | Used For: | Industrial |
| High Light: | 1208*800 LCD Screen Module,WXGA LCD Screen Module,TCG121WXLPAPNN-AN20 |
||
Product Description

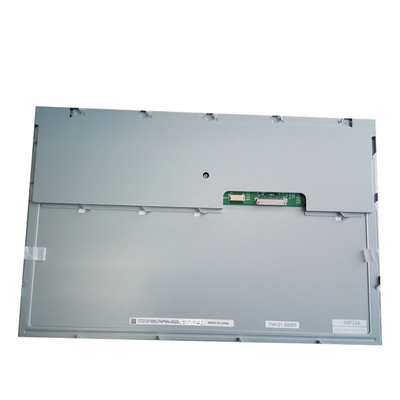

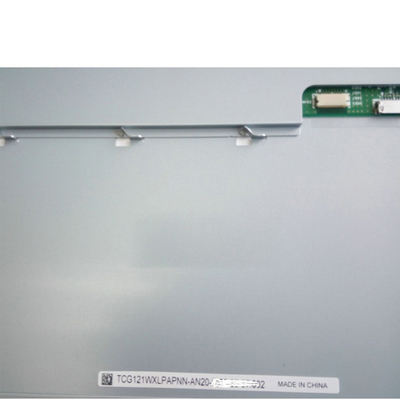

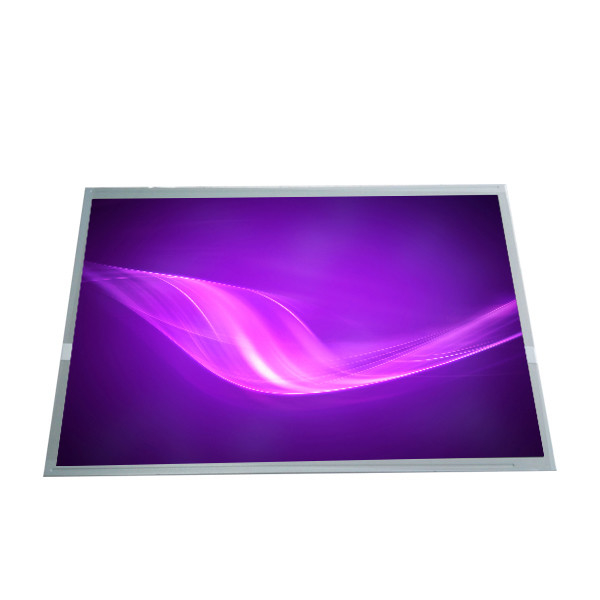

Kyocera TCG121WXLPAPNN-AN20 12.1 inch screen 1208*800 lcd screen module
TCG121WXLPAPNN-AN20 Product details :
| Kyocera LCD SCREEN TCG121WXLPAPNN-AN20 | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG121WXLPAPNN-AN20 |
| Panel Size | 12.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800, WXGA, 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 264.1(W)×166.2(H) mm |
| Outline Size | 277.7(W)×182.5(H) mm |
| Surface | Antiglare |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 750:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AWV, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Display Colors | 16.2M , 50% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 680g (Typ.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -20 ~ 70 °C ; Storage: -30 ~ 80 °C |
| Kyocera TCG121WXLPAPNN-AN20 12.1 inch screen 1208*800 lcd screen module | |
