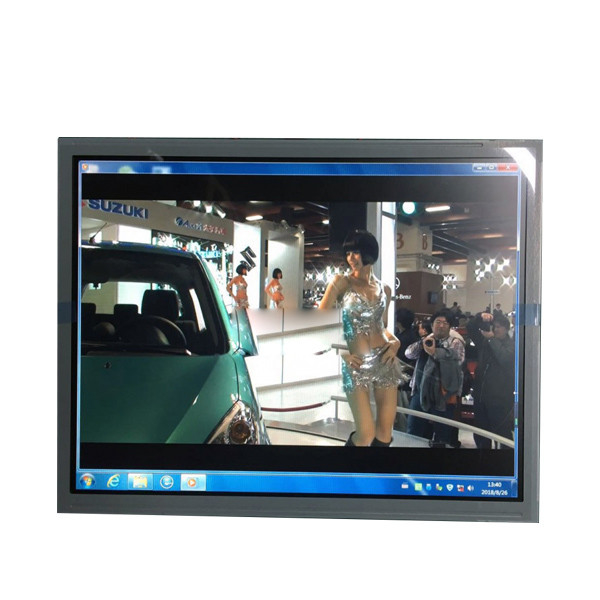

10.4 Inch LCD Display Panel TCG104XGLPAPNN-AN30-S 1024*768 LVDS
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG104XGLPAPNN-AN30-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG104XGLPAPNN-AN30-S | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 123PPI | Active Area: | 210.4(W)×157.8(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Dim.: | 230(W)×180.2(H)×11(D) Mm |
| Weight: | TBD | Designed For: | Industrial |
| High Light: | 10.4 Inch LCD Display Panel,LVDS LCD Display Panel,TCG104XGLPAPNN-AN30-S |
||
Product Description
10.4 inch TCG104XGLPAPNN-AN30-S 1024*768 LVDS lcd display panel
TCG104XGLPAPNN-AN30-S Product details :
| Kyocera LCD SCREEN TCG104XGLPAPNN-AN30-S | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG104XGLPAPNN-AN30-S |
| Panel Size | 10.4" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768[XGA] 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 210.4 × 157.8 mm (H×V) |
| Bezel Opening | 215.4 × 161.8 mm (H×V) |
| Outline Size | 230 × 180.2 × 11 mm (H×V×D) |
| Surface | matte |
| Brightness | 600 (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) [Transmission] |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AWV, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M , 51% NTSC |
| Lamp Type | 2 strings WLED , 50K hours, no driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Designed For | Industrial |
| Signal Interface | LVDS (1 ch, 6/8-bit) , terminal, 20 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -20 ~ 70 °C ; Storage: -30 ~ 80 °C |
| 10.4 inch TCG104XGLPAPNN-AN30-S 1024*768 LVDS lcd display panel | |
TCG104XGLPAPNN-AN30-S Product quality assurance:
Our product is original new , before sending the goods are tested by the engineers , ALL is OK,then they will be sended to the buyer,so you can rest assured to buy in my store.
TCG104XGLPAPNN-AN30-S Shipping and Package :
TCG104XGLPAPNN-AN30-S About transportation:
*We will ship the goods within 1-2 working days after you make the payment. We only ship according to the delivery address. If you want to change the delivery address, please contact me in advance.
*We use the fastest shipping service based on the shipping cost you pay. The transit time is usually 7-30 days and may vary by country/region. Delivery to most European, North American and Asian countries within 7-15 days. Up to 30-45 days in other countries. Provide express service (DHL/FEDEX/TNT/ARAMEX/UPS)
TCG104XGLPAPNN-AN30-S Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund.The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
TCG104XGLPAPNN-AN30-S Service hours:
If you have any question, please contact us I will sincerely for your service, our service time for the Beijing time:8: 00-12:00; 1:30-6:00;But we have 24 hours will have customer service for you to solve the problem.
TCG104XGLPAPNN-AN30-S FAQ:
Q: How can I trace my order of TCG104XGLPAPNN-AN30-S ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of TCG104XGLPAPNN-AN30-S ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of TCG104XGLPAPNN-AN30-S ?
A: Of course!sample order is welcome !
Q: Can I pay my order of TCG104XGLPAPNN-AN30-S via credit card ?
A: Yes!you can use your credit card through your Paypal account.
