7.0 Inch LCD Screen Display 1280x800 262K WLED LVDS HSD070PWW1-B01
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070PWW1-B01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD070PWW1-B01 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 215PPI | Active Area: | 150.72(W)×94.2(H) Mm |
| Outline Size: | 161.2(W)×105.5(H) ×4.5(D) Mm | Brightness: | 400 Cd/m² (Typ.) |
| Weight: | 90.0/93.0g (Typ./Max.) | Application: | Pad & Tablet / MID UMPC |
| High Light: | LVDS 7.0 inch LCD Screen Display,262K WLED LCD Screen Display,HSD070PWW1-B01 |
||
Product Description

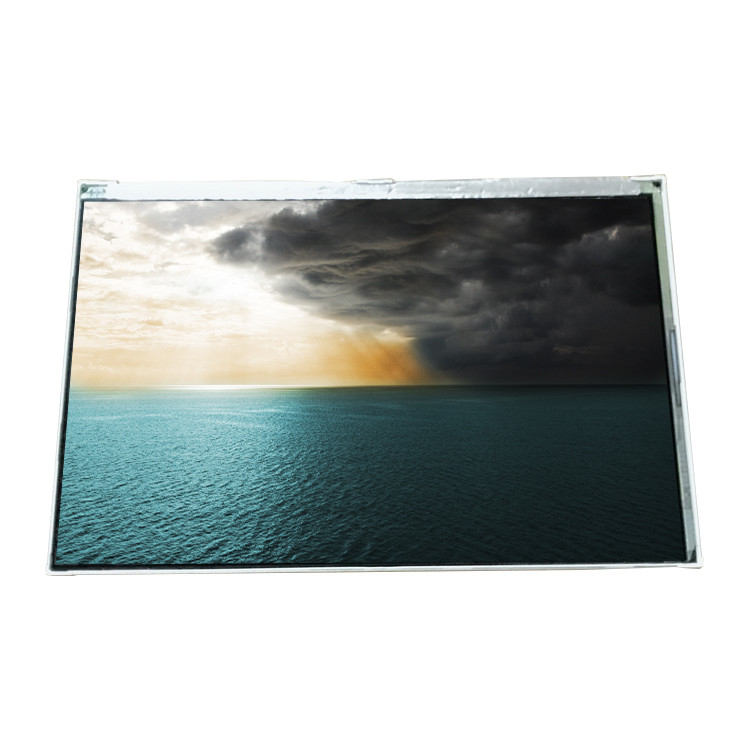

7.0 inch 1280x800 262K WLED LVDS HSD070PWW1-B01 LCD Screen Display
HSD070PWW1-B01 Product details :
| HannStar LCD Screen HSD070PWW1-B01 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD070PWW1-B01 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 215PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 150.72(W)×94.2(H) mm |
| Outline Dim. | 161.2(H)×105.5(V) ×4.5(D) mm |
| Treatment | Hard coating |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | WLED , 10K hours , With LED Driver |
| Weight | 90.0/93.0g (Typ./Max.) |
| Designed For | Pad & Tablet / MID UMPC |
| Frequency | 60Hz |
| Touch Screen | Without |
| Signal Interface | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| 7.0 inch 1280x800 262K WLED LVDS HSD070PWW1-B01 LCD Screen Display | |
HSD070PWW1-B01 a letter to the buyer:
Dear buyer, if you can't confirm your machine screen, please take the photo off the sending screen, we can confirm your screen through photos, and we are a professional LCD screen supplier, we have a lot of screens. If you want any screen to give us information, due to the time difference, we will respond to the information as soon as we see the information, thank you for watching, the best wishes are given to you.
HSD070PWW1-B01 Shipping and Package :
HSD070PWW1-B01 Delivery time:
We will receive orders in the 2 days after,so sending the parcelto you,Shipping time depends on the efficiency of your local post office and customs. General country will be 15-20 days will arrive,If you are in urgent need of a package,please choose DHL or EMS,usually in 7-10 days to reach.
HSD070PWW1-B01 Returns and Warranty:
- If the product is defective or does not work properly, please contact us immediately upon receipt of the product. We offer a 30-day refund or replacement service.
- If the product proves to be defective or not working properly,please return the product and we will resend the product to you.
- Returned items must be in original condition.Each item has a warranty label attached, please do not remove the label.
HSD070PWW1-B01 Regarding tariffs and receipts:
*The buyer is responsible for the customs duties at the destination. If your budget does not allow tariffs, please avoid express delivery (DHL, FEDEX, EMS).
*If you do not receive the package within 30 days, please contact us. If unclaimed within 15-30 days, the package will be returned.
HSD070PWW1-B01 FAQ:
Q: How to make payment for HSD070PWW1-B01 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of HSD070PWW1-B01 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How do you ship my goods HannStar HSD070PWW1-B01 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
