Industrial 10.1 Inch LCD Display LCD Screen Monitor Kyocera TCG101WXLPAANN-AN20-SA
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG101WXLPAANN-AN20-SA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG101WXLPAANN-AN20-SA | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 149PPI | Active Area: | 216.96(W)×135.6(H) Mm |
| Bezel Opening: | 219.96(W)×138.6(H) Mm | Outline Size: | 236(W)×156.8(H)×9.9(D) Mm |
| Luminance: | 500g (Typ.) | Used For: | Industrial |
| High Light: | LVDS 10.1 Inch LCD Display,Kyocera 10.1 Inch LCD Display,500 cd/m2 LCD Screen Monitor |
||
Product Description

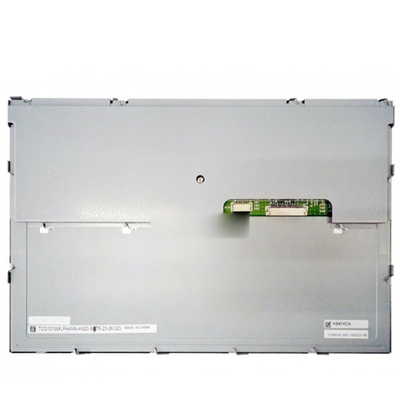

Kyocera TCG101WXLPAANN-AN20-SA 10.1 inch lcd screen monitor lcd display
TCG101WXLPAANN-AN20-SA Product details :
| Kyocera LCD SCREEN TCG101WXLPAANN-AN20-SA | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG101WXLPAANN-AN20-SA |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800[WXGA] 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 219.96(W)×138.6(H) mm |
| Outline Size | 236(W)×156.8(H)×9.9(D) mm |
| Surface | matte |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle | 80/80/80/80 (Typ.) (CR≥10 |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8/22 (Typ.)(Tr/Td) ms |
| Display Colors | 16.2M , 52% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 500g (Typ.) |
| Used for | Industrial |
| Signal Interface | LVDS (1 ch, 8-bit) , terminal, 20 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -20 ~ 70 °C ; Storage: -30 ~ 80 °C |
| Kyocera TCG101WXLPAANN-AN20-SA 10.1 inch lcd screen monitor lcd display | |
TCG101WXLPAANN-AN20-SA Tips:
Please tell us the pin and tail of the product you need before purchase. This allows us to deliver products accurately and quickly. The company adhere to quality assurance, price concessions, spot inventory business philosophy to provide customers with a full range of quality services. Looking forward to a long-term relationship with you!
TCG101WXLPAANN-AN20-SA Shipping and Package :
TCG101WXLPAANN-AN20-SA Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
TCG101WXLPAANN-AN20-SA Other Policies:
We are not responsible for any custom duty or import tax.
We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms.
TCG101WXLPAANN-AN20-SA FAQ:
Q: How to make payment for TCG101WXLPAANN-AN20-SA ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of TCG101WXLPAANN-AN20-SA at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: Do you accept sample orders for TCG101WXLPAANN-AN20-SA ?
A: Of course!sample order is welcome !
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
