10.1 Inch Industrial LCD Module Display 1280*800 TCG101WXLPAANN-AN20-S
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG101WXLPAANN-AN20-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG101WXLPAANN-AN20-S | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 149PPI | Active Area: | 216.96(W)×135.6(H) Mm |
| Bezel Opening: | 219.96(W)×138.6(H) Mm | Outline Size: | 236(W)×156.8(H)×9.9(D) Mm |
| Mass: | 500g (Typ.) | Used For: | Industrial |
| High Light: | 10.1inch LCD Module Display,WLED LCD Module Display,Industrial LCD Panel Display |
||
Product Description

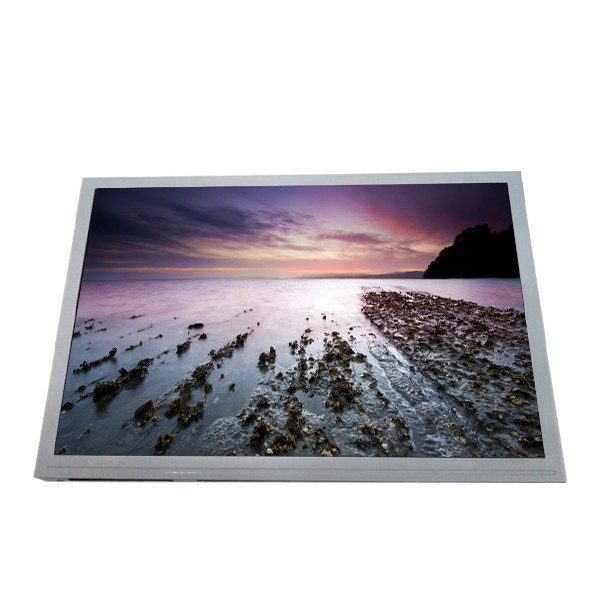

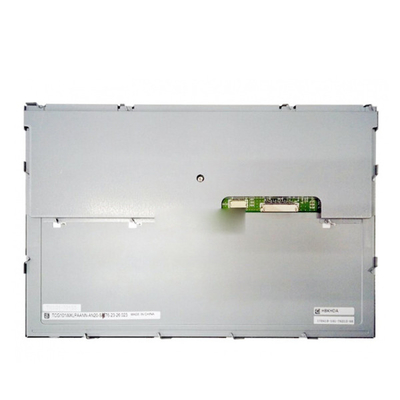

10.1 inch 1280*800 TCG101WXLPAANN-AN20-S Industrial LCD Module Display
TCG101WXLPAANN-AN20-S Product details :
| Kyocera LCD SCREEN TCG101WXLPAANN-AN20-S | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG101WXLPAANN-AN20-S |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×800[WXGA] 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 219.96(W)×138.6(H) mm |
| Outline Size | 236(W)×156.8(H)×9.9(D) mm |
| Surface | matte |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle | 80/80/80/80 (Typ.) (CR≥10 |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8/22 (Typ.)(Tr/Td) ms |
| Display Colors | 16.2M , 50% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 500g (Typ.) |
| Used for | Industrial |
| Signal Interface | LVDS (1 ch, 8-bit) , terminal, 20 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -20 ~ 70 °C ; Storage: -30 ~ 80 °C |
| 10.1 inch 1280*800 TCG101WXLPAANN-AN20-S Industrial LCD Module Display | |
TCG101WXLPAANN-AN20-S Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
TCG101WXLPAANN-AN20-S Payment:
We accept alipay here.
All major credit cards are accepted through secure payment processor ESCROW.
We also accept T/T, Western Union, Moneygram.
TCG101WXLPAANN-AN20-S Shipping and Package :
TCG101WXLPAANN-AN20-S Shipping :
1, Shipping via China Post Registered Air Mail or ePacket.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 27 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
TCG101WXLPAANN-AN20-S Warranty:
6 MonthsnbspWarranty. Buy with confidence!
TCG101WXLPAANN-AN20-S FAQ:
Q: How long will I receive my goods TCG101WXLPAANN-AN20-S ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of TCG101WXLPAANN-AN20-S via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of TCG101WXLPAANN-AN20-S ?
A: Of course!sample order is welcome !
