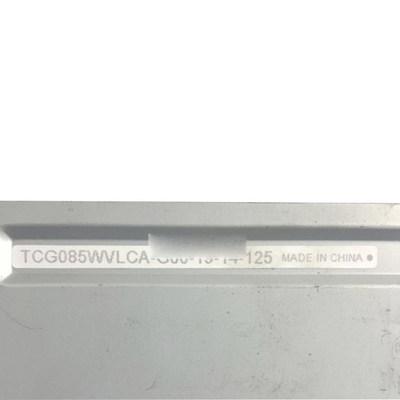

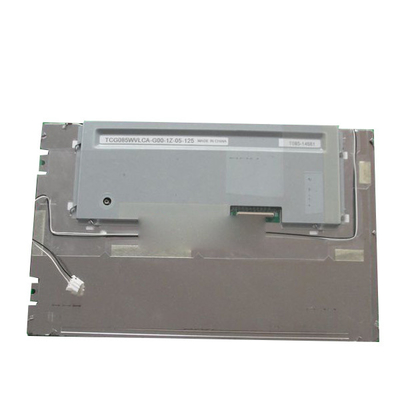

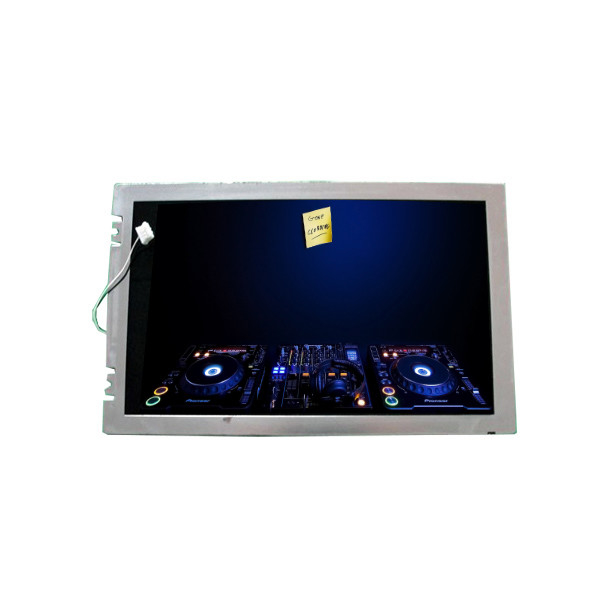

TCG085WVLCA-G00 8.5 Inch TFT LCD Screen 800*480 LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG085WVLCA-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG085WVLCA-G00 | Diagonal Size: | 8.5" |
|---|---|---|---|
| Resolution: | 800(RGB)*480, WVGA 109PPI | Active Area: | 184.8(W)*110.88(H) Mm |
| Bezel Opening: | 187.4(W)*113.5(H) Mm | Outline Dim.: | 210(W)×134(H)×9(D) |
| Designed For: | Industrial | Signal Type: | Parallel RGB (1 Ch, 6-bit) , 40 Pins Connector |
| Highlight: | TCG085WVLCA-G00,8.5 Inch TFT LCD Screen,Specular LCD Display Panel |
||
Product Description
TCG085WVLCA-G00 TFT-LCD 8.5 inch tft lcd screen 800*480 lcd display panel
TCG085WVLCA-G00 Product details :
| Kyocera LCD SCREEN TCG085WVLCA-G00 | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG085WVLCA-G00 |
| Panel Size | 8.5" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480 WVGA 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 184.8 × 110.88 mm (H×V) |
| Bezel Opening | 187.4 × 113.5 mm (H×V) |
| Outline Size | 210 × 134 mm (H×V×D) |
| Surface | Specular (Haze 0%) |
| Brightness | 200 (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing Angle | 60/60/60/45 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 15/35 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 46% NTSC |
| Lamp Type | 6S1P WLED , 15K hours, no driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 305g |
| Used for | Industrial |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , terminal, 40 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
| TCG085WVLCA-G00 TFT-LCD 8.5 inch tft lcd screen 800*480 lcd display panel | |
TCG085WVLCA-G00 NOTE:
Customer First, Integrity First, Quality First, Service First..
We do business with sincerity! Guarantee good quality ,reasonable price!
We have many different kinds of goods (including the less popular side parts),Our shop may not be able to all listed, but you can ask us a message or email.
TCG085WVLCA-G00 Shipping and Package :
TCG085WVLCA-G00 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
TCG085WVLCA-G00 Shipping details:
1.We support shipment by ePacket, Russia Express-SPSR, Singapore Post, EMS, Fedex IE etc. If dear friend want to select a fast and reliable shipping company, please feel free to contast us directly after paying. We will do our utmost to serve you.
2.Time of delivery depends on the destination country and location.
3.Your parcel will be shipped out within 1-2 workdays after after receiving cleared payment , if the order is made on Chinese holiday, it will be shipped out on next working day. Once we ship the items we will provide you with tracking number
4.General shipping time
1)Expited Shipping:
DHL,UPS,TNT,Fedex,to worldwide 3-7 Days.
2)Standard Shipping Method:
European Countres : Russia,Spain,UK,France,Netherlands etc 10-20 days
North Ameriacan Countries: USA,Canada, etc 7-20 days.
Asia Countries:Singapore,Malaysia,Japan,India,etc 13-20 days
Other Remote Countries: 25-45 days
Note: if some accident happened, it may takes more time. If you did not receive your package in 45 days please contast us, we will track the shipment and reply you as soon as possible.
TCG085WVLCA-G00 Contact us:
All the items are original & authentic. Each one will be tested strictly before shipment.
Office Hours:9:00am-18:30pm,
Monday-Saturday, Beijing Time.(Except oficial holidays.)
Please help yourself to order if we're offline.
We'll reply as soon as we get to work and arrange delivery quickly.
For large amount,please do not hesitate to contact us for our best price.
You are always welcome to leave us messages.
Expect to have nice co-operation with you.
TCG085WVLCA-G00 Guarantee and Refund:
1. All items are in good condition.
2. If the item is defective ( rarely happen ), please inform us within 3 days after you receive it and return it within warranty period ( 12 months )
3. Returned items should have original packaging and in good condition if possible. Please provide us the tracking number and the returning reason.
TCG085WVLCA-G00 FAQ:
Q: If I place order now,when will you ship the goods of TCG085WVLCA-G00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of TCG085WVLCA-G00 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of TCG085WVLCA-G00 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
