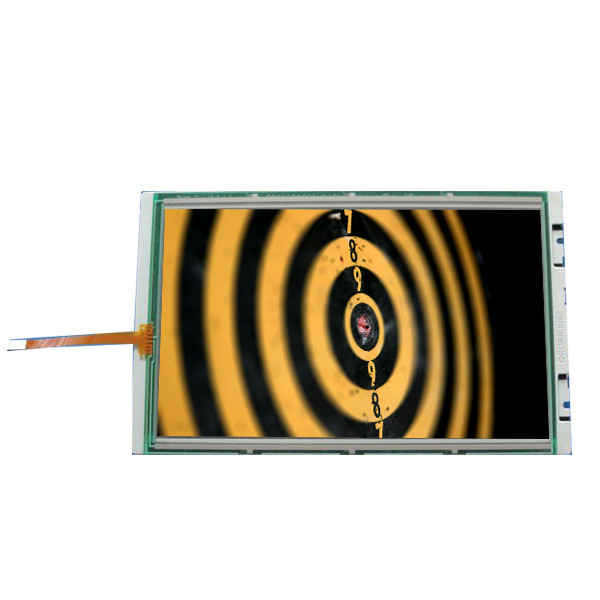

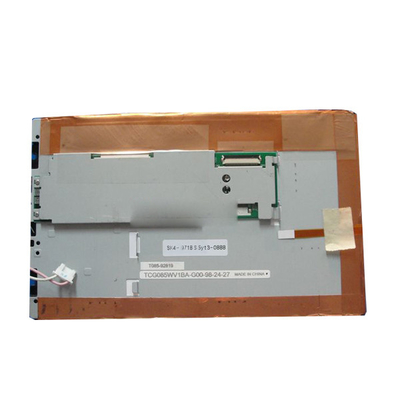

TCG085WV1AB-G00 LCD Screen Panel 8.5 Inch 800x480 TFT LCD Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG085WV1AB-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG085WV1AB-G00 | Diagonal Size: | 8.5" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 109PPI | Active Area: | 184.8(W)×110.88(H) Mm |
| Outline Size: | 210.7(W)×130.8(H) Mm | Response Time: | 15/35 (Typ.)(Tr/Td) |
| Panel Weight: | TBD | Application: | Industrial |
| High Light: | Specular LCD Screen Panel,8.5 Inch TFT LCD Display Module,TCG085WV1AB-G00 |
||
Product Description
TCG085WV1AB-G00 LCD screen panel 8.5 inch 800x480 LCD display TFT Module
TCG085WV1AB-G00 Product details :
| Kyocera LCD SCREEN TCG085WV1AB-G00 | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG085WV1AB-G00 |
| Panel Size | 8.5" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480 WVGA 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 184.8 × 110.88 mm (H×V) |
| Outline Size | 210.7(W)×130.8(H) mm |
| Surface | Specular (Haze 0%) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing Angle | 60/60/60/45 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 15/35 (Typ.)(Tr/Td) ms |
| Display Colors | 262K |
| Lamp Type | CCFL [1 pcs] , 75K hours, no driver |
| Touch Screen | Without |
| Panel Weight | TBD |
| Application | Industrial |
| Signal Interface | 40 pins CMOS (1 ch, 6-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: -10 ~ 70 °C ; Storage temperature: -20 ~ 80 °C |
| TCG085WV1AB-G00 LCD screen panel 8.5 inch 800x480 LCD display TFT Module | |
TCG085WV1AB-G00 Attention:
1.In order to avoid any mistake , please tell us your screen part number after paying, send by photo will be better, we will response you as soon as possible, thank you.
2. Before installing the screen, please turn off the machine, disconnect the power supply and remove the battery. Do not install the screen while the machine is on, otherwise your cable may be burned out.
TCG085WV1AB-G00 Payment:
When buying on Alibaba, your payments are protected by Escrow. Track your order at any stage of delivery online and feel secure that payment will only be released to the supplier after you confirm receipt of your order. With Escrow, your credit card details are never exposed.
Note:
If failed to pay, please use another cridit card, it maybe work.
TCG085WV1AB-G00 Shipping and Package :
TCG085WV1AB-G00 Shipping terms:
To guarantee the shipping time and safety delivery, we are ONLY able to ship item to the countries listed in Shipping & Packaging.
TCG085WV1AB-G00 About Warranty:
1: The product is damaged during the warranty period, we can replace it for you for free or a full refund. For some high value products, the buyer needs to return the package to us.
TCG085WV1AB-G00 FAQ:
Q: Can you give me a discount if I need a large quantity of TCG085WV1AB-G00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of TCG085WV1AB-G00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of TCG085WV1AB-G00 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of TCG085WV1AB-G00 ?
A: Of course!sample order is welcome !
