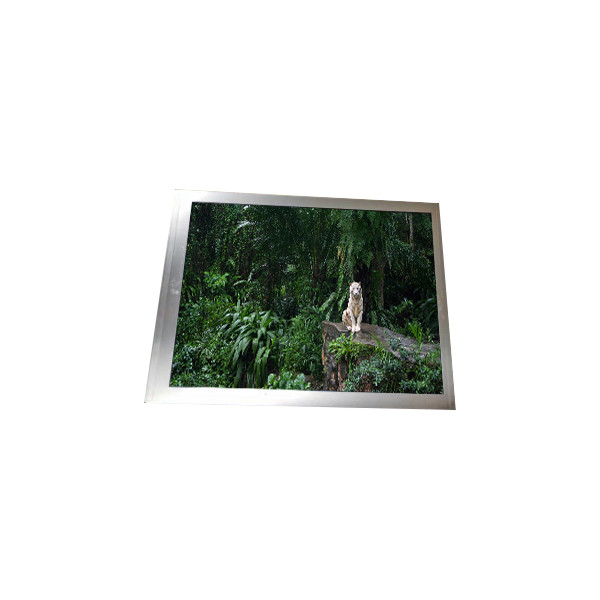

1080*2160 LCD Screen Display Panel 6.0 inch BS060Y8S-L31-DQ00
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | BS060Y8S-L31-DQ00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | BS060Y8S-L31-DQ00 | Diagonal Size: | 6.0" |
|---|---|---|---|
| Resolution: | 1080(RGB)×2160 403PPI | Active Area: | 68.04(W)×136.08(H) Mm |
| Brightness: | 0 Cd/m² | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Display Colors: | 16.7M 83% NTSC | Designed For: | Mobile Phone |
| Frame Rate: | 60Hz | Touch Panel: | In-Cell Touch |
| Highlight: | WLED LCD Screen Display Panel,400 cd/m2 LCD Screen Display Panel,H240QN02 V0 |
||
Product Description
1080*2160 LCD Screen Display Panel 6.0 inch BS060Y8S-L31-DQ00
BS060Y8S-L31-DQ00 Product details :
| Brand | BOE |
| Model P/N | BS060Y8S-L31-DQ00 |
| Diagonal Size | 6.0" |
| Panel Type | LTPS TFT-LCD, CELL , Q-CUT (Full Cell) |
| Resolution | 1080(RGB)×2160 403PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×136.08(H) mm |
| Bezel Opening | - |
| Outline Dim. | 69.44(H)×141.18(V) ×0.3(D) mm |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 35 (Max.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Plate Thickness | 0.15+0.15 mm |
| Transmittance | 4.37% (Typ.)(with APCF) |
| Support Color | 16.7M 83% NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | In-Cell Touch |
| Interface Type | COG Suggest TD4310, HX83112B, NT36670A, TD4320, TD4321, TD4325, TD4375, HX83112A |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
BS060Y8S-L31-DQ00 Notice:
Prior to the order, please check and confirm whehter the screen size, resolution, backlight type, Interface type and location can be applied to your laptop, if you have no idea, please ask us freely.
Please give us your correct contact details so that you can receive the items as early as possible.
BS060Y8S-L31-DQ00 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
BS060Y8S-L31-DQ00 Return:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
BS060Y8S-L31-DQ00 About Shipping:
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
BS060Y8S-L31-DQ00 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of BS060Y8S-L31-DQ00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of BS060Y8S-L31-DQ00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of BS060Y8S-L31-DQ00 ?
A: We accept T/T , Paypal , western union .
BS060Y8S-L31-DQ00 Shipping and Package :
