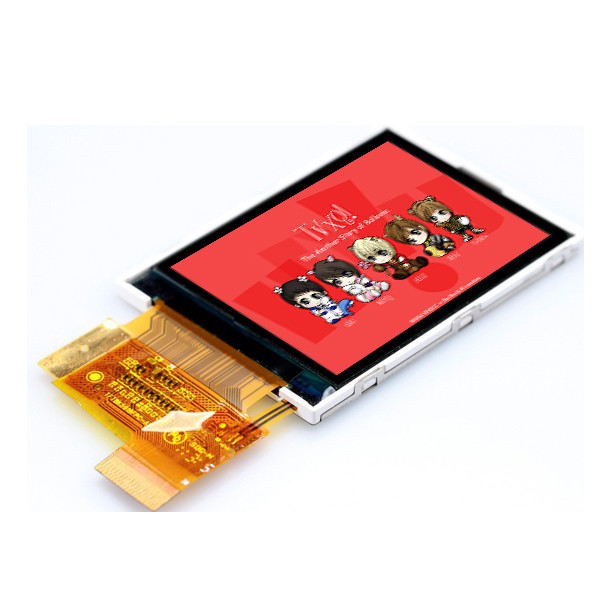

1.5'' AUO LCD Screen H154QN01 V2 240*320 12 Pins For Wearable MP3 PMP
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | H154QN01 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | H154QN01 V2 | Diagonal Size: | 1.5" |
|---|---|---|---|
| Resolution: | 240(RGB)×320, QVGA, 180PPI | Active Area: | 27.72(W)×27.72(H) Mm |
| Outline Size: | 31.82(W)×33.72(H) Mm | Viewing Angle: | 60/35/55/60 (Typ.)(CR≥10) |
| Weight: | 2.40g | Designed For: | Wearable MP3 PMP |
| High Light: | 1.5'' AUO LCD Screen,H154QN01 V2 AUO LCD Screen,Wearable LCD Screen Display Panel |
||
Product Description
AUO 1.5 inch H154QN01 V2 240*320 12 pins LCD SCREEN
H154QN01 V2 Product details :
| AUO LCD SCREEN H154QN01 V2 | |
| Panel Brand | AUO |
| Panel Model | H154QN01 V2 |
| Panel Size | 1.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 240(RGB)×320, QVGA, 180PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 27.72(W)×27.72(H) mm |
| Outline Size | 31.82(W)×33.72(H) mm |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 150:1 (Typ.) (TM) |
| Viewing Angle | 60/35/55/60 (Typ.)(CR≥10) |
| Display Mode | ECB, Normally White, Transmissive |
| Response Time | 6/20 (Typ.)(Tr/Td) |
| Display Colors | 262K 50% NTSC |
| Lamp Type | 5 pcs WLED , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Wearable MP3 PMP |
| Panel Weight | 2.40g |
| Signal Interface | MIPI (1 data lane) , 12 pins Connector |
| Input Voltage | 1.8/3.0V (Typ.)(VDD3/VCI) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| AUO 1.5 inch H154QN01 V2 240*320 12 pins LCD SCREEN | |
H154QN01 V2 Specifications:
> Fast delivery
> Best price
> Good quality
> Excellent service
> new and original; we offer high quality, fast delivery, competitive price for our customers;
> Please send your RFQ(request for quoting) to get latest price;
> We will ship the items within 2 working days after receive the payment;
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices;
> Warranty of each part.
H154QN01 V2 About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
H154QN01 V2 Return:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
H154QN01 V2 About Shipping:
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
H154QN01 V2 FAQ:
Q: When will my order 1.5 inch lcd panel H154QN01 V2 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 1.5 inch lcd panel H154QN01 V2 before shipping?
A: Don't Worry , The H154QN01 V2 was tested ok before shipping.
Q: What happen if H154QN01 V2 I received can't work ?
A: The H154QN01 V2 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
H154QN01 V2 Shipping and Package :
