12.3 Inch IPS TFT LCD Screen 1920*720 Symmetry Hannstar HSD123JPW3-A10
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD123JPW3-A10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD123JPW3-A10 | Diagonal Size: | 12.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 167PPI | Active Area: | 292.032(W)×109.512(H) Mm |
| Outline Dim.: | 302(H)×125.4(V)×14.2(D) Mm | Light Source: | WLED [11S4P] , 30K Hours , W/O Driver |
| Weight: | 345/378g (Typ./Max.) | Designed For: | Outdoor High Brightness / Automotive Display |
| High Light: | HSD123JPW3-A10,TFT LCD Screen Symmetry,Symmetry TFT LCD Display |
||
Product Description

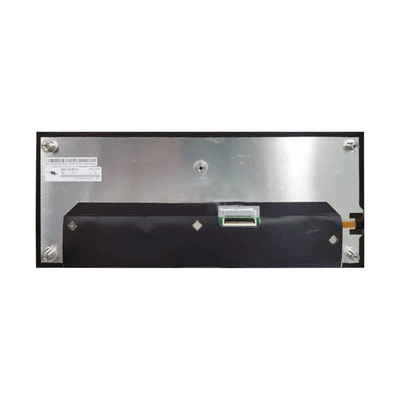

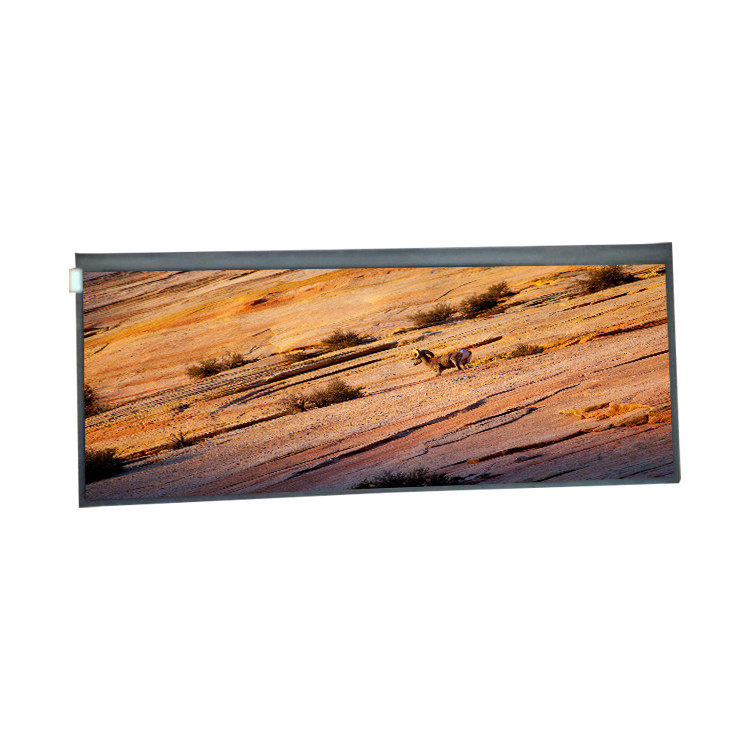

Hannstar HSD123JPW3-A10 1920*720 12.3 inch IPS TFT LCD module screen
HSD123JPW3-A10 Product details :
| HannStar LCD Screen HSD123JPW3-A10 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD123JPW3-A10 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Outline(mm) | 302 × 125.4 × 14.2 (H×V×D) |
| Treatment | Glare (Haze 0%), Hard coating |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS Pro, Normally Black, Transmissive |
| Color Depth | 16.7M 75% NTSC |
| Backlight | 11S4P WLED , 30K hours , No Driver |
| Mass | 345/378g (Typ./Max.) |
| Used for | Outdoor High Brightness / Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Hannstar HSD123JPW3-A10 1920*720 12.3 inch IPS TFT LCD module screen | |
HSD123JPW3-A10 Payment:
When buying on Alibaba, your payments are protected by Escrow. Track your order at any stage of delivery online and feel secure that payment will only be released to the supplier after you confirm receipt of your order. With Escrow, your credit card details are never exposed.
HSD123JPW3-A10 Shipping and Package :
HSD123JPW3-A10 Packaging Details:
Product you ordered comes with protective package:Use anti-static bag,anti-shock bubble bag.clean carton box and foam to avoid any damage during international shipping.
HSD123JPW3-A10 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
HSD123JPW3-A10 After Sale:
1.Please provide us with the proof of video or photo if products have any problem after receiving the parcel within 7 days, we will offer replacement or refund after confirming the problem.
HSD123JPW3-A10 FAQ:
Q: Can you tested the HSD123JPW3-A10 before shipping ?
A: Of course , our lcd panel HSD123JPW3-A10 was Strictly tested before shipping.
Q: How to order HannStar HSD123JPW3-A10 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd HSD123JPW3-A10 ?
A: 90 days .
Q: What happen if the lcd panel HSD123JPW3-A10 I received can't work ?
A: HSD123JPW3-A10 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
