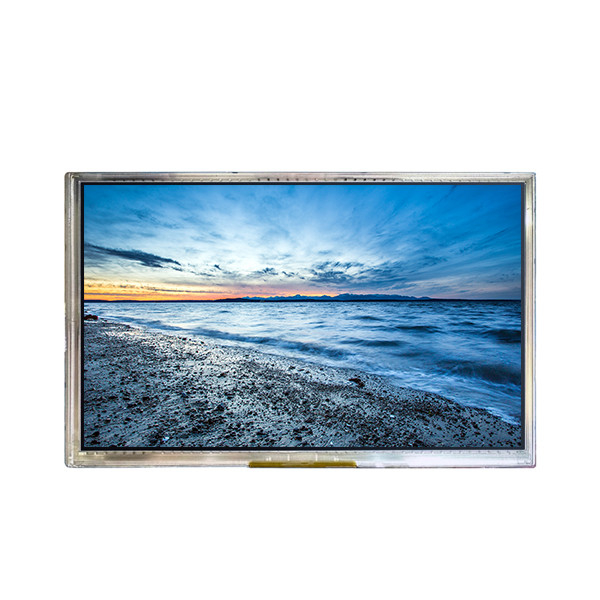

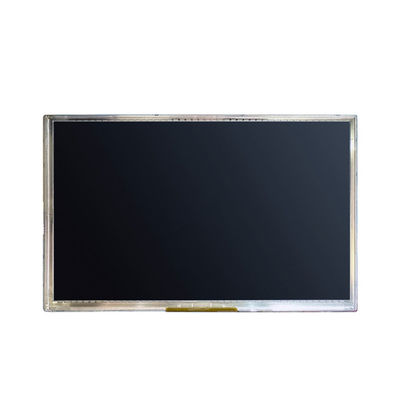

NL12880BC20-13ND 12.1 inch Industrial LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL12880BC20-13ND |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL12880BC20-13ND | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
| Outline Size: | 298.7(W)×200.8(H)×11.5(D) | Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) |
| Color Depth: | 262K/16.7M 40% NTSC | Designed For: | Industrial |
| Treatment: | Antiglare, Hard Coating (6H) | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Highlight: | CCFL Mobile Phone LCD Screen,106PPI Mobile Phone LCD Screen,H038QR01-1 |
||
Product Description
NL12880BC20-13ND 12.1 inch Industrial LCD Screen
NL12880BC20-13ND Product details :
| Brand | NEC |
| Model P/N | NL12880BC20-13ND |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | - |
| Outline(mm) | 298.7(W)×200.8(H)×11.5(D) |
| Luminance | 430 (Typ.)(cd/m²) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 262K/16.7M 40% NTSC |
| Mass | 710/800g (Typ./Max.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare, Hard coating (6H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | UA-SFT, Normally Black, Transmissive |
| Response | 25 (Typ.)(Tr+Tf) ms |
| Backlight | WLED , 70K hours , No Driver |
| Used for | Industrial |
| Touchscreen | PCAP, Optical Bonding |
| Signal Type | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C |
NL12880BC20-13ND Specifications:
> Fast delivery
> Best price
> Good quality
> Excellent service
> new and original; we offer high quality, fast delivery, competitive price for our customers;
> Please send your RFQ(request for quoting) to get latest price;
> We will ship the items within 2 working days after receive the payment;
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices;
> Warranty of each part.
NL12880BC20-13ND About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL12880BC20-13ND Return
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
NL12880BC20-13ND Customs:
The item price and shipping cost are not included any import taxes.The buyers are responsible for all additional customs taxes, If you need clearing customs invoice, please contact with us.
NL12880BC20-13ND FAQ:
Q: Can you give me a discount if I need a large quantity of NL12880BC20-13ND ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NL12880BC20-13ND ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of NL12880BC20-13ND ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of NL12880BC20-13ND ?
A: Of course!sample order is welcome !
NL12880BC20-13ND Shipping and Package :
