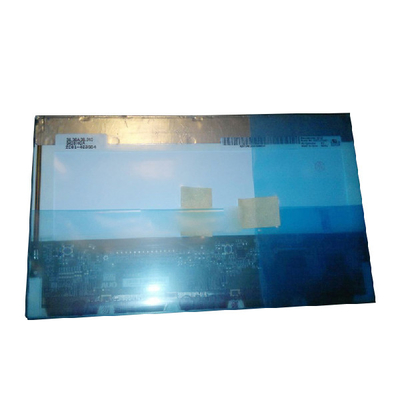

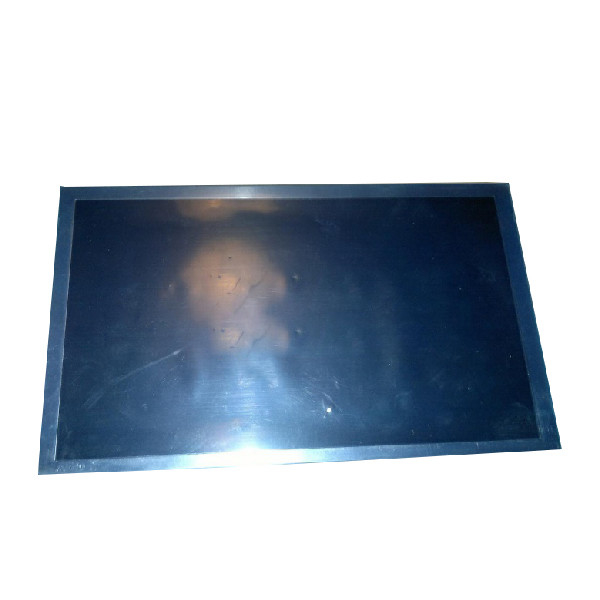

RGB Vertical Stripe A089SW01 V1 1024*600 40 pins LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A089SW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A089SW01 V1 | Diagonal Size: | 8.9" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 [WSVGA] 133PPI | Active Area: | 195.072 × 113.4 Mm (H×V) |
| Bezel Opening: | 156.3(W)×118.4(H) Mm | Outline Dim.: | 213.36 × 129.55 × 5.45 Mm (H×V×D) |
| Weight: | 179g (Typ.) | Designed For: | Netbook PC |
Product Description
RGB Vertical Stripe A089SW01 V1 1024*600 40 pins LCD SCREEN
A089SW01 V1 Product details :
| AUO LCD SCREEN A089SW01 V1 | |
| Panel Brand | AUO |
| Panel Model | A089SW01 V1 |
| Panel Size | 8.9" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×600 [WSVGA] 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 195.072 × 113.4 mm (H×V) |
| Bezel Opening | 198.27 × 116.6 mm (H×V) |
| Outline Size | 213.36 × 129.55 × 5.45 mm (H×V×D) |
| Surface | Glare (Haze 0%) |
| Brightness | 180 (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) [Transmission] |
| Viewing Angle | 40/40/20/40 (Typ.) (CR≥10 |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | 262K |
| Lamp Type | 3S8P WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Panel Weight | 179g (Typ.) |
| Used for | Netbook PC |
| Touchscreen | Without |
| Signal Interface | LVDS (1 ch, 6-bit) , terminal, 40 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| RGB Vertical Stripe A089SW01 V1 1024*600 40 pins LCD SCREEN | |
