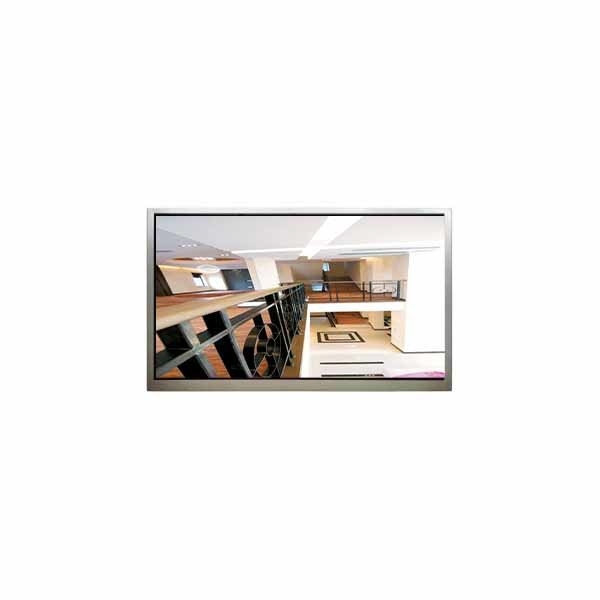

Original in stock 11.6 inch HSD116BHW2-A00 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD116BHW2-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD116BHW2-A00 | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGB Vertical Stripe | Application: | Laptop |
| Viewing Angle: | 45/40/15/35 (Typ.)(CR≥10) | Operating Mode: | TN, Normally White, Transmissive |
| Plate Thickness: | 0.40+0.40 Mm | Designed For: | Laptop |
Product Description
Original in stock 11.6 inch HSD116BHW2-A00 LCD Display Screen
HSD116BHW2-A00 Product details :
| Brand | HannStar |
| Model P/N | HSD116BHW2-A00 |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Dim. | 265.125(H)×154.3(V)×0.8(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 10 (Typ.)(Tr+Tf) |
| Viewing Angle | 45/40/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Plate Thickness | 0.40+0.40 mm |
| Transmittance | 6.16% (Typ.)(with Polarizer) |
| Support Color | 16.7M 45%NTSC |
| Light Source | No B/L |
| Form Style | - |
| Designed For | Laptop |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Suggest OTD7101A + OTD9800A, HX8245-E04 + HX8695-B02 |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
HSD116BHW2-A00 NOTE:
Before delivering to you, tell me what type of tablet computer? Please tell me the number of the flexible cable code. I need to check the number.
We get different codes in the factory at different times, so we can guarantee that the codes you receive will be compatible with your tablet computer, if your computer does not have the same cable code as the pictures on the network! Do not assume that the model does not match the description. Some accessories may be products from several years ago. After receiving the goods, please wash them with alcohol and wipe them with an eraser. Please restart the tablet after receiving the goods.
Please leave your exact full name (especially the buyer from RU) and phone number in your order as the buyer, so that the courier can deliver your goods in time and easily.
HSD116BHW2-A00 Shipping and Package :
HSD116BHW2-A00 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
HSD116BHW2-A00 General shipping time:
1)Expited Shipping:
DHL,UPS,TNT,Fedex,to worldwide 3-7 Days.
2)Standard Shipping Method:
European Countres : Russia,Spain,UK,France,Netherlands etc 10-20 days
North Ameriacan Countries: USA,Canada, etc 7-20 days.
Asia Countries:Singapore,Malaysia,Japan,India,etc 13-20 days
Other Remote Countries: 25-45 days
Note: if some accident happened, it may takes more time. If you did not receive your package in 45 days please contast us, we will track the shipment and reply you as soon as possible.
HSD116BHW2-A00 After Sale:
1.Please provide us with the proof of video or photo if products have any problem after receiving the parcel within 7 days, we will offer replacement or refund after confirming the problem.
HSD116BHW2-A00 FAQ:
Q: How can I trace my order of HSD116BHW2-A00 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of HSD116BHW2-A00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of HSD116BHW2-A00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods HSD116BHW2-A00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
