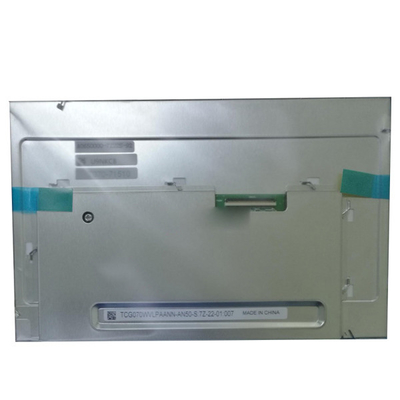

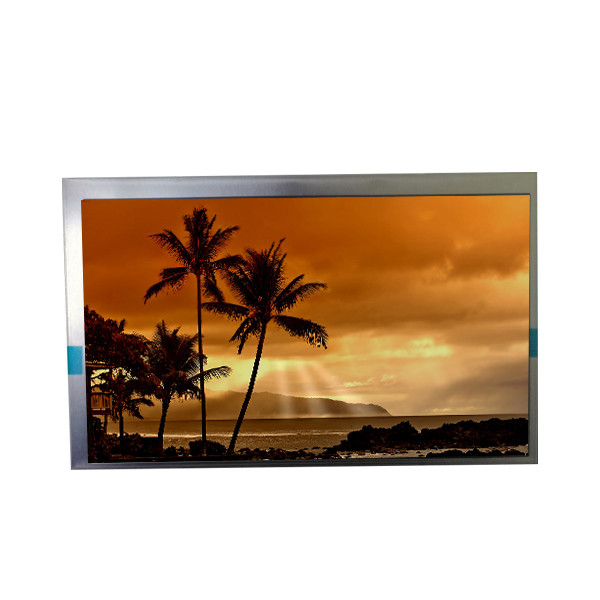

TCG070WVLPAANN-AN50-S 7.0 inch lcd display 800*480 sunlight readable 900nits LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG070WVLPAANN-AN50-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG070WVLPAANN-AN50-S | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Active Area: | 152.4(W)×91.44(H) Mm |
| Bezel Opening: | 154.4(W)×93.4(H) Mm | Outline Dim.: | 165(H)×104.4(V) ×8.5(D) Mm |
| Weight: | 195g (Typ.) | Designed For: | Industrial |
Product Description
TCG070WVLPAANN-AN50-S 7.0 inch lcd display 800*480 sunlight readable 900nits LCD Screen Panel
TCG070WVLPAANN-AN50-S Product details :
| Kyocera LCD SCREEN TCG070WVLPAANN-AN50-S | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG070WVLPAANN-AN50-S |
| Panel Size | 7.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480, WVGA, 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.4(W)×93.4(H) mm |
| Outline Size | 165(W)×104.4(H)×8.5(D) mm |
| Surface | Antiglare |
| Brightness | 900 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 5/25 (Typ.)(Tr/Td) |
| Display Colors | 262K , 49% NTSC |
| Lamp Type | 2 strings WLED , 50K hours, without driver |
| Touch Screen | Without |
| Panel Weight | 195g (Typ.) |
| Application | Industrial |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| TCG070WVLPAANN-AN50-S 7.0 inch lcd display 800*480 sunlight readable 900nits LCD Screen Panel | |
TCG070WVLPAANN-AN50-S Payment:
When buying on ALI, your payments are protected by Escrow. Track your order at any stage of delivery online and feel secure that payment will only be released to the supplier after you confirm receipt of your order. With Escrow, your credit card details are never exposed.
TCG070WVLPAANN-AN50-S Shipping and Package :
TCG070WVLPAANN-AN50-S Shipping:
1. We will test them strictly before shipment.
2. We will only pay the shipping cost and tax for our country, if there is any shipping cost and tax in your country, you should pay for it.
3. We will send the product within7 working days after receiving the order.(Chinese New Year, we will extend the delivery of products)
4.Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
5.Please confirm it with us before buying if you need 100% new.
TCG070WVLPAANN-AN50-S Warranty and Guarantee:
6 months Warranty. Buy with confidence!
If you are not satisfied when you receive your item, please return it within 7 days for a replacement or money back. Please contact me before you return it.
If compatible item is defective in 6 months, or offer refund after we receive the defective item.
If compatible item is defective after 6 months, you can still send it back to us. We will send you a new one after receiving the defective item.
But you have to pay the extra shipping fee.
The original new item we guarantee its quality and can work well on machine. we don't accept return.
TCG070WVLPAANN-AN50-S Other Policies:
We are not responsible for any custom duty or import tax.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
TCG070WVLPAANN-AN50-S FAQ:
Q: How to make payment for TCG070WVLPAANN-AN50-S ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of Kyocera TCG070WVLPAANN-AN50-S at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of TCG070WVLPAANN-AN50-S ?
A: we will give you tracking number then you can trace your order form website.
Q: How long is the warranty of TCG070WVLPAANN-AN50-S ?
A: 90 days warranty .
