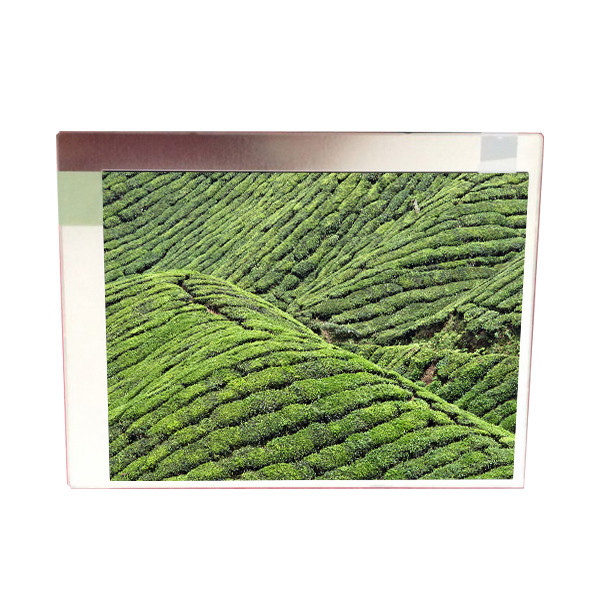

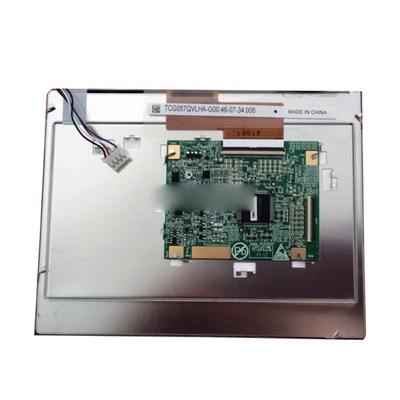

TCG057QVLHA-G00 Original 5.7 inch 320*240 LCD screen display for Kyocera
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG057QVLHA-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG057QVLHA-G00 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA 70PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Bezel Opening: | 118.4(W)×89.6(H) Mm | Outline(mm): | 134.5 × 103.4 × 8.5 (H×V×D) |
| Backlight: | WLED , No Driver | Used For: | Industrial |
Product Description
TCG057QVLHA-G00 Original 5.7 inch 320*240 LCD screen display for Kyocera
TCG057QVLHA-G00 Product details :
| Kyocera LCD SCREEN TCG057QVLHA-G00 | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG057QVLHA-G00 |
| Panel Size | 5.7" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 320(RGB)×240, QVGA, 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 118.4(W)×89.6(H) mm |
| Outline Size | 134.5(W)×103.4(H)×8.5(D) mm |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 10/25 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , |
| Lamp Type | WLED , W/O Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Designed For | Industrial |
| Signal Interface | Parallel RGB (1 ch, 6-bit) 33 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: -20 ~ 70 °C ; Storage temperature: -30 ~ 80 °C |
| TCG057QVLHA-G00 Original 5.7 inch 320*240 LCD screen display for Kyocera | |
TCG057QVLHA-G00 Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
TCG057QVLHA-G00 Product Details:
- Conditions: Before sending the project, We will conduct multiple tests perfect work, the quality is 100% guaranteed.
- If you’re not sure if it’s the right item you need, or you need more quantity . Please contact me before ordering.
- Original LCD Screen and tested before sending.
TCG057QVLHA-G00 Shipping and Package :
TCG057QVLHA-G00 About Shipping:
we will test them strictly before shipping.
we will ship it in 1 working day after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
TCG057QVLHA-G00 NOTICE:
- Import duties, taxes and charges are not included in the item price or shipping charges.
- Please check with your country’s customs office to determine what these additional costs will be prior to bidding / buying.
- We try our best to provide you the most reliable,affordable way of shipping service. But sometimes international delivery is highly depended on the courier company and local customs/duties, the shipping time maybe longer than usual,Please wait patiently.
TCG057QVLHA-G00 FAQ:
Q: Can you give me a discount if I need a large quantity of TCG057QVLHA-G00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of TCG057QVLHA-G00 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of TCG057QVLHA-G00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
