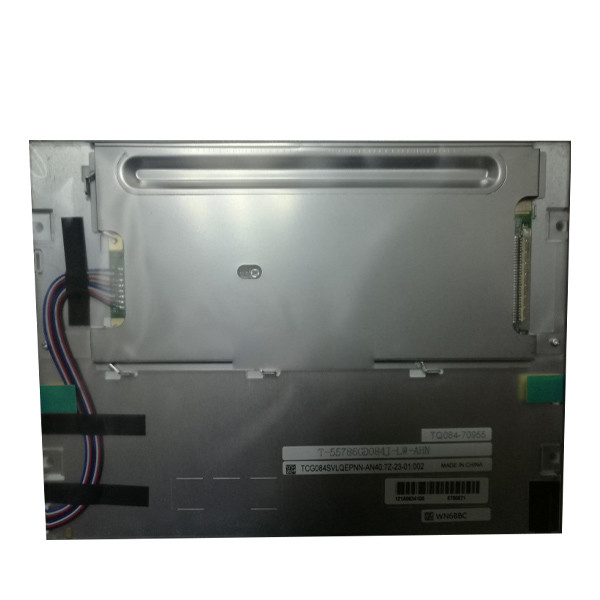

OPTREX T-55786GD084J-LW-AHN Original LCD TFT 8.4 inch LCD Screen Display In Stock
Product Details:
| Place of Origin: | China |
| Brand Name: | OPTREX |
| Model Number: | T-55786GD084J-LW-AHN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | T-55786GD084J-LW-AHN | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 119PPI | Active Area: | 170.4(W)×127.8(H) Mm |
| Bezel Opening: | 173.9(W)×131.9(H) Mm | Outline Dim.: | 199.5(H)×149(V) ×12(D) Mm |
| Weight: | 365g (Typ.) | Designed For: | Industrial / Outdoor High Brightness |
Product Description
OPTREX T-55786GD084J-LW-AHN Original LCD TFT 8.4 inch LCD Screen Display In Stock
T-55786GD084J-LW-AHN Product details :
| OPTREX LCD SCREEN T-55786GD084J-LW-AHN | |
|---|---|
| Panel Brand | OPTREX |
| Panel Model | T-55786GD084J-LW-AHN |
| Panel Size | 8.4" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600, SVGA, 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 170.4(W)×127.8(H) mm |
| Bezel Opening | 173.9(W)×131.9(H) mm |
| Outline Size | 199.5(W)×149(H)×12(D) mm |
| Surface | matte |
| Brightness | 1200 cd/m² (Typ.) |
| Contrast Ratio | 750:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AWV, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Display Colors | 16.2M , 51% NTSC |
| Lamp Type | 6S4P WLED , 70K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 365g (Typ.) |
| Designed For | Industrial / Outdoor High Brightness |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -30 ~ 80 °C ; Storage: -30 ~ 80 °C |
| OPTREX T-55786GD084J-LW-AHN Original LCD TFT 8.4 inch LCD Screen Display In Stock | |
