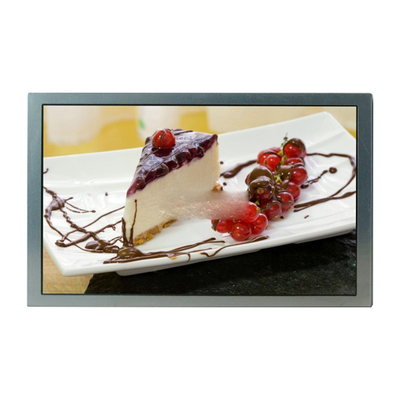

OPTREX 8.4 inch LCM 800*480 T-55692D070H-LW-A-AAN LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | OPTREX |
| Model Number: | T-55692D070H-LW-A-AAN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | T-55692D070H-LW-A-AAN | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Active Area: | 152.4(W)×91.44(H) Mm |
| Bezel Opening: | 156.4(W)×95.5(H) Mm | Outline Dim.: | 169.8(W)×109.7(H)×9.4(D) Mm |
| Light Source: | WLED , 100K Hours , With LED Driver | Used For: | Industrial / Outdoor High Brightness |
Product Description
OPTREX 8.4 inch LCM 800*480 T-55692D070H-LW-A-AAN LCD Screen Display
T-55692D070H-LW-A-AAN Product details :
| OPTREX LCD SCREEN T-55692D070H-LW-A-AAN | |
|---|---|
| Panel Brand | OPTREX |
| Panel Model | T-55692D070H-LW-A-AAN |
| Panel Size | 7.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480(WVGA) 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 152.4 × 91.44 (H×V) mm |
| Bezel Opening | 156.4 × 95.5 (H×V) mm |
| Outline Size | 169.8 × 109.7 × 9.4 (H×V×D) mm |
| Surface | Clear, Hard coating (3H) |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmission) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 12/12 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M , 50% NTSC |
| Lamp Type | WLED , 100K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Industrial / Outdoor High Brightness |
| Signal Interface | LVDS (1 ch, 6/8-bit) , terminal, 20 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| OPTREX 8.4 inch LCM 800*480 T-55692D070H-LW-A-AAN LCD Screen Display | |
T-55692D070H-LW-A-AAN Payment:
We accept alipay here.
All major credit cards are accepted through secure payment processor ESCROW.
We also accept T/T, Western Union, Moneygram.
T-55692D070H-LW-A-AAN Shipping and Package :
T-55692D070H-LW-A-AAN Shipping:
• the default delivery is (ALI DHL standard delivery).
• if you need other delivery methods, please contact us, we can provide the following delivery methods :DHL, EMS, UPS, FEDEX.
Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.
- We offer a 30days Money back or replacement (buyer's choice).
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition.
- Each item is pasted with a warranty label, please do not tear up the label.
- We do this to minimize errors and misunderstanding.
T-55692D070H-LW-A-AAN FAQ:
Q: How long will I receive my goods T-55692D070H-LW-A-AAN ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of T-55692D070H-LW-A-AAN ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of T-55692D070H-LW-A-AAN to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of T-55692D070H-LW-A-AAN via credit card ?
A: Yes!you can use your credit card through your Paypal account.
