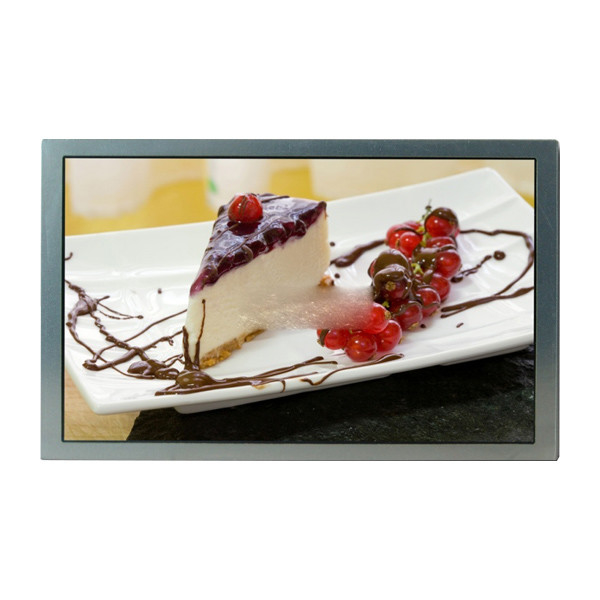

Brand New Original T-55562D090J-LW-A-AAN LCD Screen Display In Stock
Product Details:
| Place of Origin: | China |
| Brand Name: | OPTREX |
| Model Number: | T-55562D090J-LW-A-AAN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | T-55562D090J-LW-A-AAN | Diagonal Size: | 9.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 103PPI | Active Area: | 196.8(W)×118.08(H) Mm |
| Bezel Opening: | 199.4(W)×120.7(H) Mm | Outline Dim.: | 219(H)×136.2(V) ×10(D) Mm |
| Weight: | 340g (Typ.) | Designed For: | Industrial |
Product Description
Brand New Original T-55562D090J-LW-A-AAN LCD Screen Display In Stock
T-55562D090J-LW-A-AAN Product details :
| OPTREX LCD SCREEN T-55562D090J-LW-A-AAN | |
|---|---|
| Panel Brand | OPTREX |
| Panel Model | T-55562D090J-LW-A-AAN |
| Panel Size | 9.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480 WVGA 103PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 196.8(horizontal)×118.08(vertical) mm |
| Bezel Opening | 199.4(horizontal)×120.7(vertical) mm |
| Outline Size | 219 (horizontal) × 136.2 (vertical) × 10 (thickness) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (Transmission) |
| Viewing Angle | 80/80/80/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 4/12 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M , 40% NTSC |
| Lamp Type | WLED [7S2P] , 100K hours, no driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 340g (Typ.) |
| Designed For | Industrial |
| Signal Interface | LVDS (1 ch, 6/8-bit) , terminal, 20 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| Brand New Original T-55562D090J-LW-A-AAN LCD Screen Display In Stock | |
T-55562D090J-LW-A-AAN About Product:
1: Please read the product information carefully to avoid buying the wrong product. If you are not sure if the product is right for you, please feel free to contact us. We have professional engineers to help you. We will ask you for pictures and some product information, please reply in time, this is very important.
2: Some products, due to different production time, different production plants, different sales areas. Some coding and details may have some differences. Please don't worry, this is a normal phenomenon. We guarantee that the products are the same.
T-55562D090J-LW-A-AAN Shipping and Package :
T-55562D090J-LW-A-AAN About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
T-55562D090J-LW-A-AAN Special reminder:
1.The store will sell each product before shipping, and will be tested to determine that the product will be shipped after it is 100% working normally.
2.We will ship the order within 72 hours after payment of the order. If the product purchased by the customer is out of stock or the color corresponding to the purchased product is out of stock, we will notify the customer as soon as possible.
3.After receiving the product, please take a picture of the packaging before proceeding to the entire packaging process. If the product is damaged, please do not raise any disputes. Please contact us, we will replace or refund according to the actual situation.
4. We are not responsible for any loss caused by improper operation during the repair and replacement of the screen.
T-55562D090J-LW-A-AAN About Warranty:
1: The product is damaged during the warranty period, we can replace it for you for free or a full refund. For some high value products, the buyer needs to return the package to us.
T-55562D090J-LW-A-AAN FAQ:
Q: How to make payment of T-55562D090J-LW-A-AAN ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of T-55562D090J-LW-A-AAN ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of T-55562D090J-LW-A-AAN via credit card ?
A: Yes!you can use your credit card through your Paypal account.
