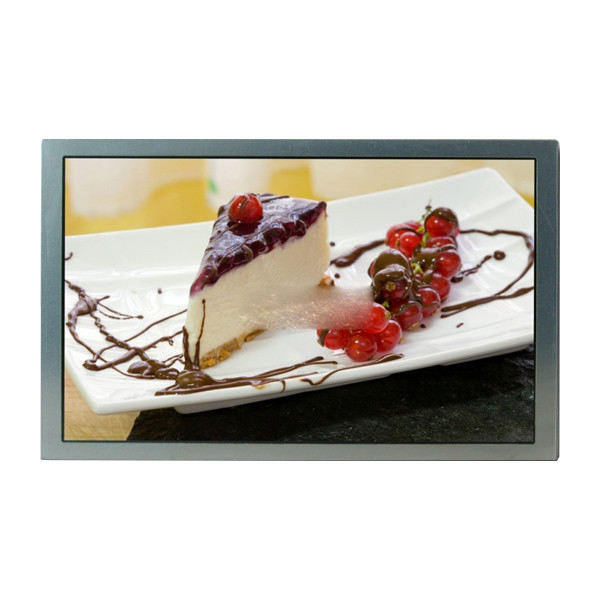

OPTREX 9.0 inch 800*480 T-55561D090J-LW-A-AAN lcd Screen panel display
Product Details:
| Place of Origin: | China |
| Brand Name: | OPTREX |
| Model Number: | T-55561D090J-LW-A-AAN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | T-55561D090J-LW-A-AAN | Diagonal Size: | 9.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 103PPI | Active Area: | 196.8(W)×118.08(H) Mm |
| Bezel Opening: | 199.4(W)×120.7(H) Mm | Outline Dim.: | 219(W)×136.2(H)(D) Mm |
| Mass: | 320g (Typ.) | Used For: | Industrial |
Product Description
OPTREX 9.0 inch 800*480 T-55561D090J-LW-A-AAN lcd Screen panel display
T-55561D090J-LW-A-AAN Product details :
| OPTREX LCD SCREEN T-55561D090J-LW-A-AAN | |
|---|---|
| Panel Brand | OPTREX |
| Panel Model | T-55561D090J-LW-A-AAN |
| Panel Size | 9.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480 WVGA 103PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 196.8(horizontal)×118.08(vertical) mm |
| Bezel Opening | 199.4(horizontal)×120.7(vertical) mm |
| Outline Size | 219 (horizontal) × 136.2 (vertical) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (Transmission) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 12/12 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M , 72% NTSC |
| Lamp Type | WLED [7S2P] , 60K hours, no driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 320g (Typ.) |
| Application | Industrial |
| Signal Interface | 20 pins LVDS (1 ch, 6/8-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| OPTREX 9.0 inch 800*480 T-55561D090J-LW-A-AAN lcd Screen panel display | |
T-55561D090J-LW-A-AAN Description:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
5.Exactly the same items and pictures.
6.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
7.Each item has been checked and in good condition before shipping.
8. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
T-55561D090J-LW-A-AAN T-55466D084J-LW-A-AAN Shipping and Package :
T-55561D090J-LW-A-AAN Packing:
The parcel will be packed well with bubble bag + strong box.Do not worry.
T-55561D090J-LW-A-AAN Shipping and Delivery Time:
1.We ship worldwide by DHL,UPS,FedEx,EMS,TNTE-Packet,HK PostSG PostChina Post etc.
2.We guarantee to ship out within 3 working days after payment confrmation(except Holiday).
3.We only ship to confrmed order address.Your order address MUST MATCH your shipping address.
4.If you haven't received your shipment within 30 days after payment,please contact us.
We will track the shipment and get back to you as soon as possible.
T-55561D090J-LW-A-AAN Warranty:
6 Months Warranty. Buy with confidence!
T-55561D090J-LW-A-AAN FAQ:
Q: Can I pay my order of T-55561D090J-LW-A-AAN via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of T-55561D090J-LW-A-AAN ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of T-55561D090J-LW-A-AAN ?
A: Of course!sample order is welcome !
