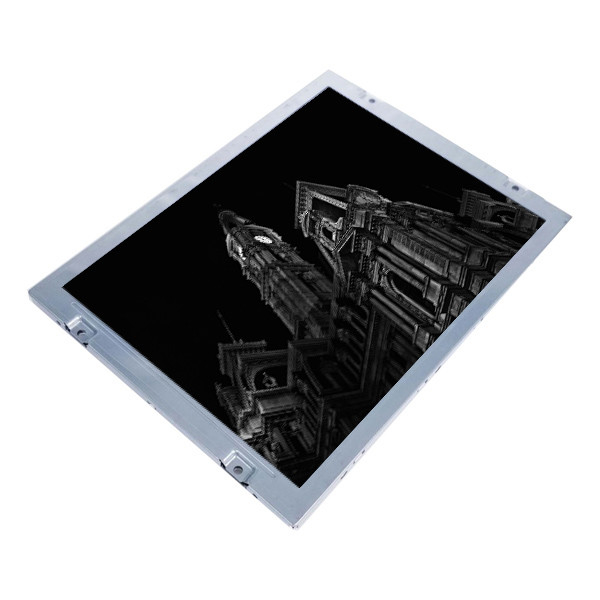

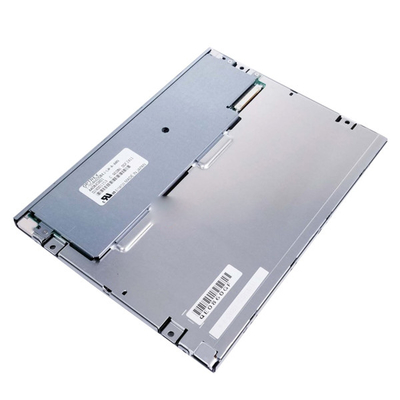

OPTREX 20 pins 8.4 inch tft lcd screen T-55466D084J-LW-A-AAN 800*600 lcd display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | OPTREX |
| Model Number: | T-55466D084J-LW-A-AAN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | T-55466D084J-LW-A-AAN | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 119PPI | Active Area: | 170.4(W)×127.8(H) Mm |
| Bezel Opening: | 174.9(W)×132.2(H) Mm | Outline Dim.: | 199.5(H)×149(V) Mm |
| Weight: | 365g (Typ.) | Designed For: | Industrial |
Product Description
OPTREX 20 pins 8.4 inch tft lcd screen T-55466D084J-LW-A-AAN 800*600 lcd display panel
T-55466D084J-LW-A-AAN Product details :
| Kyocera LCD SCREEN T-55466D084J-LW-A-AAN | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | T-55466D084J-LW-A-AAN |
| Panel Size | 8.4" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600, SVGA, 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 170.4(W)×127.8(H) mm |
| Bezel Opening | 174.9(W)×132.2(H) mm |
| Outline Size | 199.5(W)×149(H) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 4/12 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M , 40% NTSC |
| Lamp Type | 2 strings WLED , 60K hours, without driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 365g (Typ.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Working: -30 ~ 80 °C ; Storage: -30 ~ 80 °C |
| OPTREX 20 pins 8.4 inch tft lcd screen T-55466D084J-LW-A-AAN 800*600 lcd display panel | |
