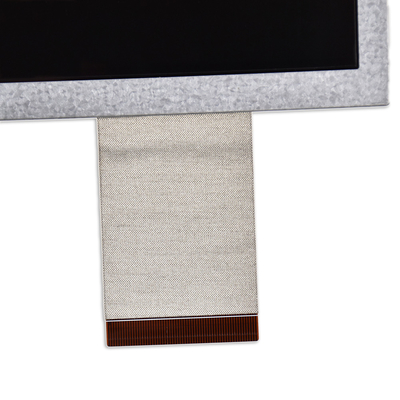

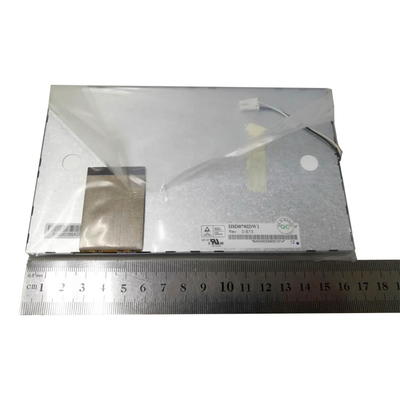

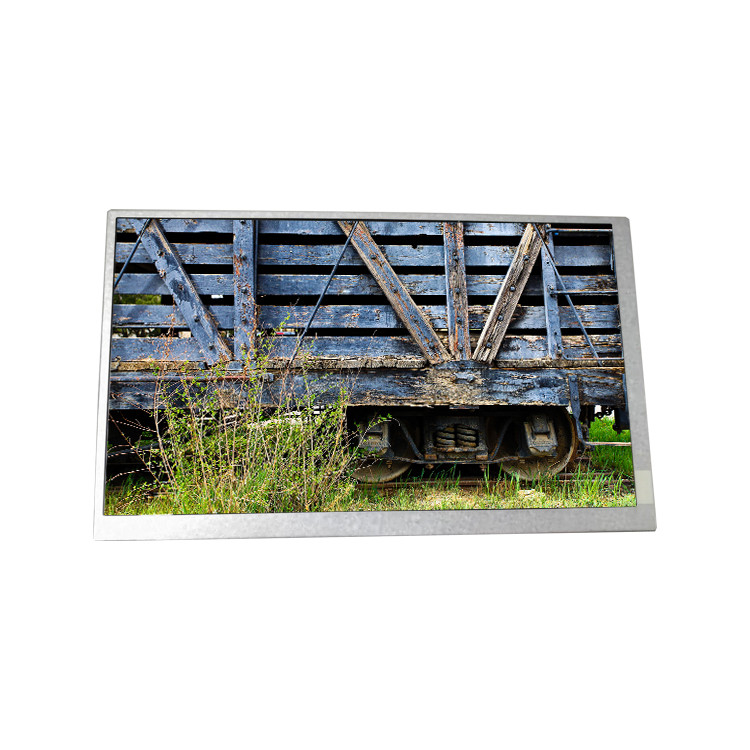

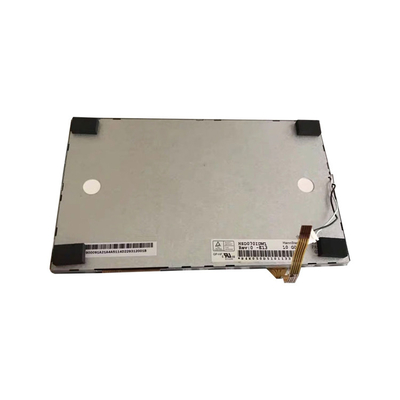

HSD070IDW1-E13 Hannstar 7.0 inch a-si TFT lcd display panel for Automotive display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070IDW1-E13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD070IDW1-E13 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 134PPI | Active Area: | 153.6(W)×86.64(H) Mm |
| Bezel Opening: | 156.0(W)×90.1(H) Mm | Outline Dim.: | 164.9(W)×100(H) Mm |
| Weight: | 170g (Typ.) | Designed For: | Automotive Display |
Product Description
HSD070IDW1-E13 Hannstar 7.0 inch a-si TFT lcd display panel for Automotive display
HSD070IDW1-E13 Product details :
| HannStar LCD Screen HSD070IDW1-E13 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD070IDW1-E13 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×86.64(H) mm |
| Bezel Opening | 156.0(W)×90.1(H) mm |
| Outline Dim. | 164.9(W)×100(H) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td); |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.2M 50% NTSC |
| Light Source | WLED [3S9P] , 20K hours , W/O Driver |
| Weight | 170g (Typ.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6/8-bit) 60 pins FPC |
| Power Supply | 3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| HSD070IDW1-E13 Hannstar 7.0 inch a-si TFT lcd display panel for Automotive display | |
HSD070IDW1-E13 Special reminder:
1. The store will sell each product before shipping, and will be tested to determine that the product will be shipped after it is 100% working normally.
2. We will ship the order within 72 hours after payment of the order. If the product purchased by the customer is out of stock or the color corresponding to the purchased product is out of stock, we will notify the customer as soon as possible.
3. After receiving the product, please take a picture of the packaging before proceeding to the entire packaging process. If the product is damaged, please do not raise any disputes. Please contact us, we will replace or refund according to the actual situation.
4. We are not responsible for any loss caused by improper operation during the repair and replacement of the screen.
HSD070IDW1-E13 Shipping and Package :
HSD070IDW1-E13 Packaging:
We usually pack our products by anti-static bags, bubble bags, good quality cartons. And we promise here if you get it bad because of poor package, it will be 100% our responsibility, and we will take care of that. And as it proved for our reponsibility, you will get 100% your money back, or free replacement.
HSD070IDW1-E13 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
HSD070IDW1-E13 Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund.The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
HSD070IDW1-E13 FAQ:
Q: How can I trace my order of HSD070IDW1-E13 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of HSD070IDW1-E13 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of HSD070IDW1-E13 via credit card ?
A: Yes!you can use your credit card through your Paypal account
