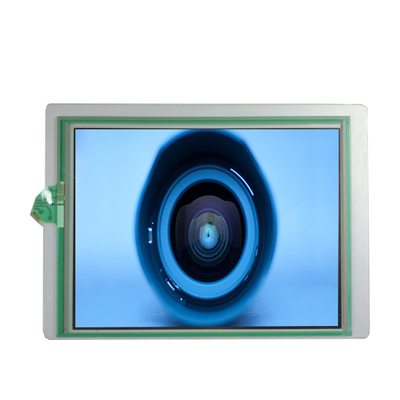

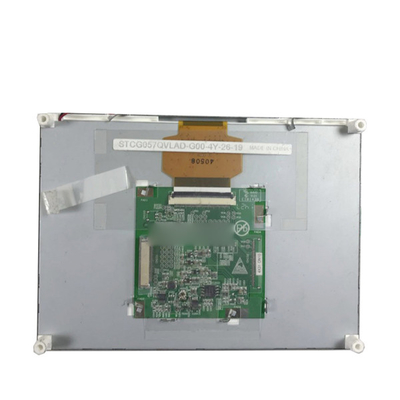

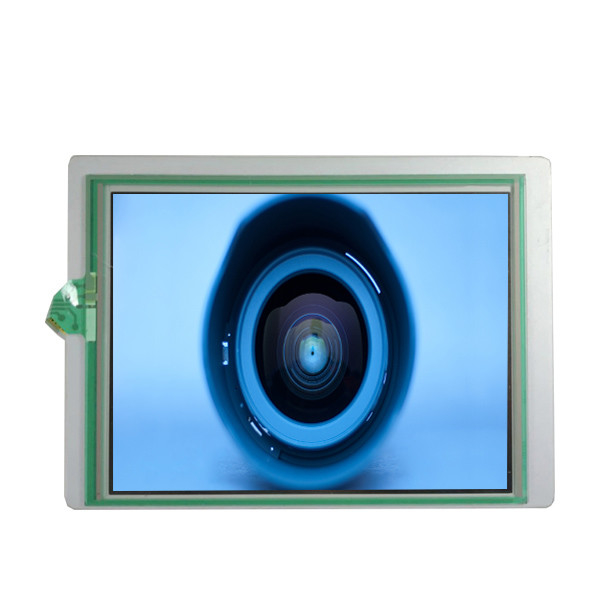

Kyocera 5.7 Inch LCD Touch Screen Panel 320*240 STCG057QVLAD G00
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | STCG057QVLAD-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | STCG057QVLAD-G00 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA 70PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Contrast Ratio: | 500 : 1 (Typ.) (TM) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥5) |
| Touchscreen: | 4-wire Resistive Touch | Used For: | Industrial |
| High Light: | Kyocera LCD Touch Screen Panel,STCG057QVLAD G00 LCD Touch Screen Panel,Kyocera Tft Touch Screen |
||
Product Description
Kyocera 5.7 Inch LCD Touch Screen Panel 320*240 STCG057QVLAD G00
Kyocera 5.7 inch touch panel display 320*240 lcd panel STCG057QVLAD-G00 lcd screen
STCG057QVLAD-G00 Product details :
| Kyocera LCD SCREEN STCG057QVLAD-G00 | |
|---|---|
| manufacturer | Kyocera |
| Model Name | STCG057QVLAD-G00 |
| screen size | 5.7 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 320(RGB)×240 [QVGA] 70PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 115.2(H)×86.4(V) mm |
| surface treatment | Glare (Haze 0%) |
| Contrast | 500:1 (Typ.) (TM) |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥5) |
| Responding time | 10/25 (Typ.)(Tr/Td) |
| Number of color | 262K |
| Backlight type | WLED |
| Apply to | Industrial |
| Touch function | 4-wire Resistive Touch |
| signal system | Parallel RGB (1 ch, 6-bit) |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Kyocera 5.7 inch touch panel display 320*240 lcd panel STCG057QVLAD-G00 lcd screen | |
STCG057QVLAD-G00 Features:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
STCG057QVLAD-G00 Shipping and Package :
STCG057QVLAD-G00 Shipping and Packaging:
All lemswill be double checked and wel acked belore sendin , tems will be dispatched wlhin 2-5 business days after buyers pay for the order. it usually tlakes about 30 to 60 working days for delvering the package to the destination (for remote areas it may take a litte longer)Meamwhie,you can choose EMs or DHL Express to shorten the shipping time if you need the order urgently (Piease confrm your recipient name and shipping information betore placing order ,
STCG057QVLAD-G00 Speclal Announcement:
Argentina: it usually takes about 60 to 90 working days for delivering order to your place.
BrazII: CPF or CNPJ is required. it usually takes about 60 to 90 working days for dellvering order to your place.
Russian Federation:FULL RECIPIENT NAME is required , it usually takes about 90 to 120 working days for delivering order to your place.
If you do not recelve order within 60 working days,please feel ree to contact us belore leaving Negative and Neutral Feedback we wll do our best to helpyou resolve the problem.
STCG057QVLAD-G00 Returns:
Returns accepted. Item must be in original condition. And you should pay the additional shipping fees incurred and the items returned should be kept in their original state.
STCG057QVLAD-G00 FAQ:
Q: How to make payment of STCG057QVLAD-G00 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of STCG057QVLAD-G00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of STCG057QVLAD-G00 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of STCG057QVLAD-G00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
