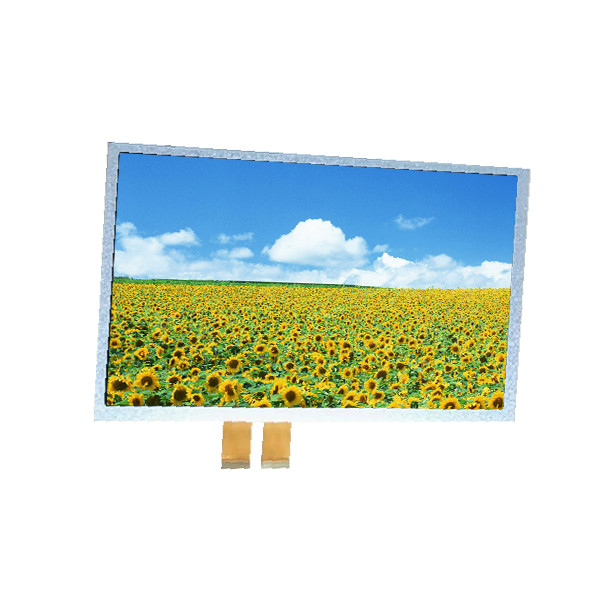

10.1 inch 800x480 A101VW02 V2 60 pins LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A101VW02 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A101VW02 V2 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 800×480(RGB), WVGA 92PPI | Active Area: | 219.6 X 131.76(mm) |
| Outline Size: | 235 X 145.9 X 5.7(mm) | Brightness: | 300 Cd/m² (Typ.) |
| Contrast Ratio: | 400 : 1 (Typ.) (TM) | Application: | Digital Photo Frame Portable DVD Player |
Product Description
10.1 inch 800x480 A101VW02 V2 60 pins LCD Screen
A080SN03 V3 Product details :
| AUO LCD Screen A101VW02 V2 | |
| Panel Brand | AUO |
| Panel Model | A101VW02 V2 |
| Screen size | 10.1inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800×480(RGB), WVGA 92PPI |
| Pixel configuration | RGB Horizontal Stripe |
| Display size | 219.6 X 131.76(mm) |
| Outline Size | 235 X 145.9 X 5.7(mm) |
| Surface | Matte ,Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 65/65/45/60 (Typ.)(CR≥10) |
| Response Time | 12/18 (Typ.)(tr/td) ms |
| Optical mode | TN, Normally White, Transmissive |
| Number of colors | 16.2m 50% |
| Weight | 320g |
| Touch Screen | Touch Screen |
| Application | Digital Photo Frame Portable DVD Player |
| Signal Interface | Parallel RGB (1 ch 8-bit) + spi FPC 60 pins |
| Supply voltage | 3.3v (Typ.) |
| Maximum rating | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 10.1 inch 800x480 A101VW02 V2 60 pins LCD Screen | |
