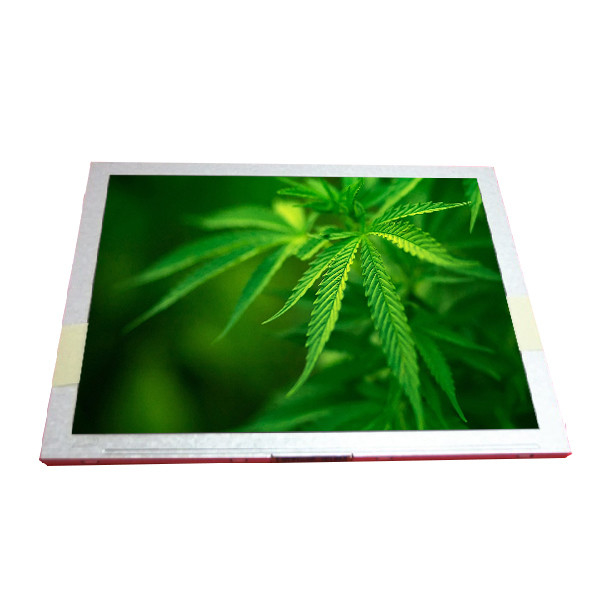

Auo 8 inch 800*600 TFT lcd panel A080SN03 V3
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A080SN03 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A080SN03 V3 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 125PPI | Active Area: | 162(W)×121.5(H) Mm |
| Outline Size: | 199(W)×119(H) Mm | Brightness: | 210 Cd/m² (Typ.) |
| Contrast Ratio: | 500 : 1 (Typ.) (TM) | Application: | Digital Photo Frame Portable DVD Player |
Product Description
Auo 8 inch 800*600 TFT lcd panel A080SN03 V3
A080SN03 V3 Product details :
| AUO LCD SCREEN A080SN03 V3 | |
| Panel Brand | AUO |
| Panel Model | A080SN03 V3 |
| Panel Size | 8.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600, SVGA, 125PPI |
| Pixel Format | RGB Horizontal Stripe |
| Display Area | 162(W)×121.5(H) mm |
| Bezel Opening | 163.8(W)×123.3(H) mm |
| Outline Size | 183(W)×141(H) mm |
| Surface | Matte, Hard coating (2H) |
| Brightness | 210 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing Angle | 70/70/60/65 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | 16.2M , 50% NTSC |
| Lamp Type | WLED [3S6P] , 10K hours, no driver |
| Frequency | 60Hz |
| Panel Weight | 230±10g |
| Designed For | Digital Photo Frame Portable DVD Player |
| Touch Panel | PCAP, I²C |
| Interface Type | TTL (1 ch, 8-bit) + SPI , 60 pins FPC |
| Input Voltage | 3.3/5/-5/14/-14V (Typ.)(VDDIO/VDPA/VDNA/VGH/VGL) |
| Environment | Working: -10 ~ 60 °C ; Storage: -20 ~ 70 °C |
| Auo 8 inch 800*600 TFT lcd panel A080SN03 V3 | |
