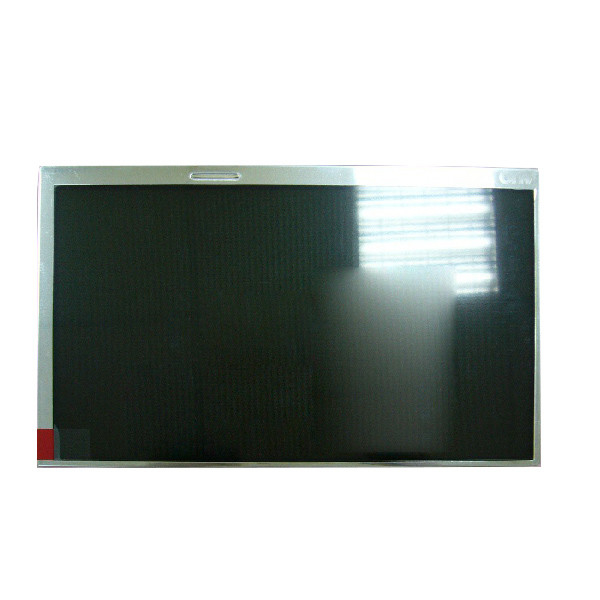

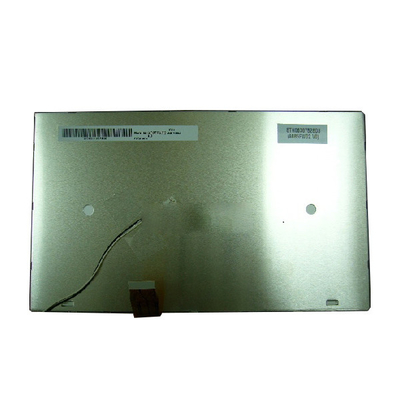

A085FW02 V0 touch screen panel LCD display TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A085FW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A085FW02 V0 | Diagonal Size: | 8.5" |
|---|---|---|---|
| Resolution: | 480(RGB)×234, 63PPI | Active Area: | 187.2(H)×105.3(V) Mm |
| Outline Size: | 199(W)×119(H) Mm | Brightness: | 250 Cd/m² (Typ.) |
| Contrast Ratio: | 300 : 1 (Typ.) (TM) | Application: | Digital Photo Frame Portable DVD Player |
Product Description
A085FW02 V0 touch screen panel LCD display TFT Module
A085FW02 V0 Product details :
| AUO LCD SCREEN A085FW02 V0 | |
| Panel Brand | AUO |
| Model Name | A085FW02 V0 |
| Screen size | 8.5inches |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 480(RGB)×234, 63PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 187.2(H)×105.3(V) mm |
| Outline | 199(W)×119(H) mm |
| Surface | Antiglare |
| Brightness | 250 cd/m² (Typ.) |
| Contrast | 300:1 (Typ.) (TM) |
| Work Mode | TN, normally white display, transmissive |
| Viewing angle | 65/65/50/65 (Typ.)(CR≥10) |
| Response | 12/18 (Typ.)(Tr/Td) |
| Color Depth | Full color |
| Backlight type | 6S1P WLED, 10K hours, without driver |
| Screen weight | 192±10g |
| Used for | Digital Photo Frame Portable DVD Player |
| Touchscreen | Without |
| Signal Type | TFT Specific Analog RGB, 26 pins, FPC |
| Supply voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Maximum | Working: -10 ~ 60 °C; Storage: -20 ~ 70 °C |
| A085FW02 V0 touch screen panel LCD display TFT Module | |
