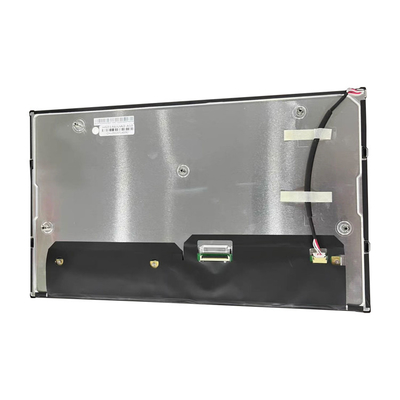

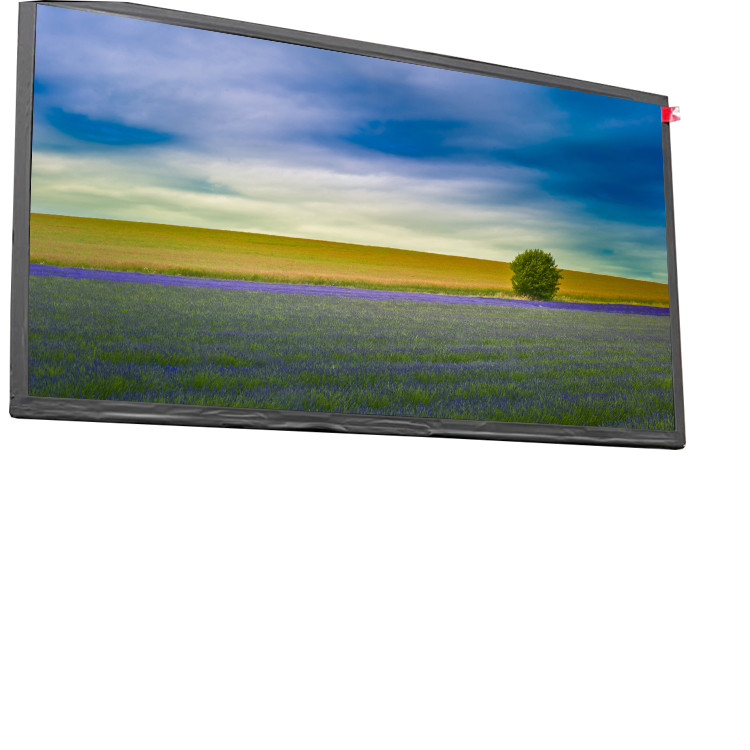

15.6 inch LCD panel HSD156JUW2-A10 1920(RGB)*1080 LCD screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD156JUW2-A10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD156JUW2-A10 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline Size: | 363.7(W)×215.7(H) Mm | Brightness: | 850 Cd/m² (Typ.) |
| Contrast Ratio: | 1000 : 1 (Typ.) (TM) | Application: | Outdoor High Brightness / Automotive Display |
Product Description
15.6 inch LCD panel HSD156JUW2-A10 1920(RGB)*1080 LCD screen Display
HSD156JUW2-A10 Product details :
| HannStar LCD Screen HSD156JUW2-A10 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD156JUW2-A10 |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Outline Size | 363.7(W)×215.7(H) mm |
| Surface | Hard coating |
| Brightness | 850 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 15/15 (Max.)(Tr+Td) |
| Display Colors | 16.7M 70% |
| Lamp Type | 4 strings WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Weight | TBD |
| Application | Outdoor High Brightness / Automotive Display |
| Signal Interface | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 15.6 inch LCD panel HSD156JUW2-A10 1920(RGB)*1080 LCD screen Display | |
