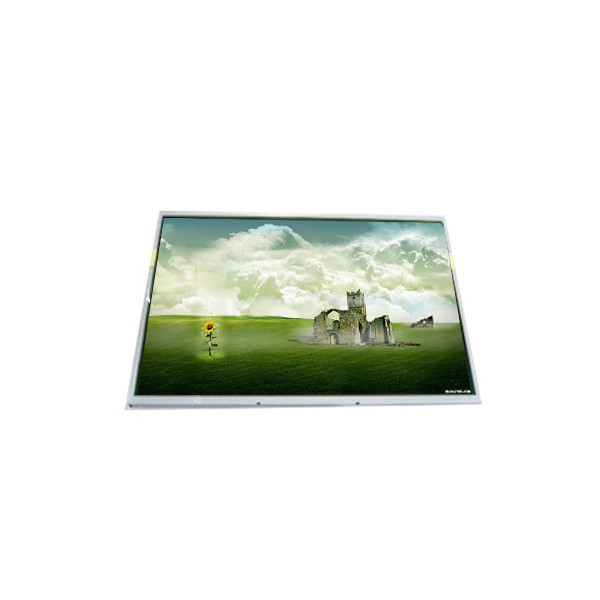

LM238WF2-SJF1 23.8 inch screen lcd display 1920*1080 lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM238WF2-SJF1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LM238WF2-SJF1 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 92PPI | Active Area: | 527.04(W)×296.46(H) Mm |
| Luminance: | 0 Cd/m² | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Response Time: | 14 (Typ.)(G To G) | Designed For: | Desktop Monitor |
| Display Colors: | 16.7M 72%NTSC | Frequency: | 60Hz |
Product Description
LM238WF2-SJF1 23.8 inch screen lcd display 1920*1080 lcd panel
LM238WF2-SJF1 Product details :
| Brand | LG Display |
| Model P/N | LM238WF2-SJF1 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Size | 534.04(W)×307.76(H) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 72%NTSC |
| Frequency | 60Hz |
| Weight | 420/445g (Typ./Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 14 (Typ.)(G to G) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Driver IC | COFBuilt-in 4 source chips |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
LM238WF2-SJF1 Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
LM238WF2-SJF1 Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
LM238WF2-SJF1 Shipping and Package :
LM238WF2-SJF1 Shipping:
1.We ship to worldwide, per order have a tracking number.
2.Item will be shipped within 3 business days after we received a verified payment.
3. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary , particularly during the holiday season,such as Christmas season and weeks before Chinese New YearHoliday, most warehouses will be full that it will cause delayed to deliver.
4.lf you have not received your items within 30 days after payment for postage delivery (like china post),pleaselet us know. We will further track the parcel and reply you ASAP. Our goal is customer satisfaction!
5.We support most shipping ways: DHL. UPS,FEDEX,EMS, HK Post, SG Post, China Post etc.
6. About delivery time(reference only).
LM238WF2-SJF1 About Warranty:
1: The product is damaged during the warranty period, we can replace it for you for free or a full refund. For some high value products, the buyer needs to return the package to us.
LM238WF2-SJF1 FAQ:
Q: Can you give me a discount if I need a large quantity of LM238WF2-SJF1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of LM238WF2-SJF1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of LM238WF2-SJF1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of LM238WF2-SJF1 ?
A: Of course!sample order is welcome !
