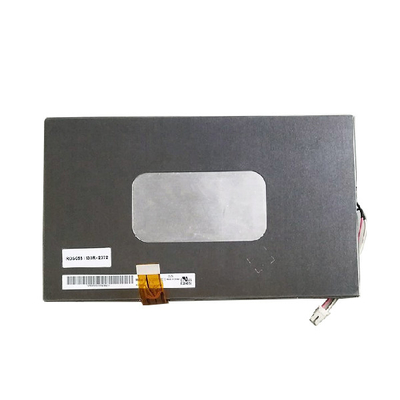

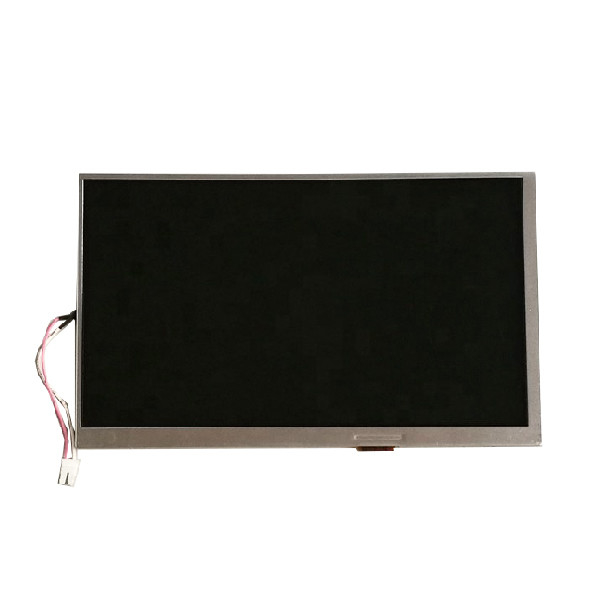

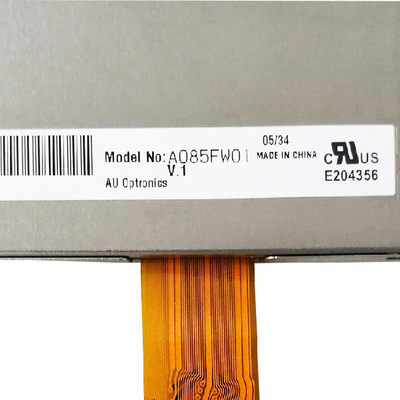

8.5 inch A085FW01 V.1 480*234 LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A085FW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A085FW01 V1 | Diagonal Size: | 8.5" |
|---|---|---|---|
| Resolution: | 480(RGB)×234, 63PPI | Display Size: | 187.2(H)×105.3(V) Mm |
| Outline(mm): | 199(W)×119(H) Mm | Viewing Angle: | 65/65/50/65 (Typ.)(CR≥10) |
| Responding: | 12/18 (Typ.)(Tr/Td) | Used For: | Automotive Display Digital Photo Frame Portable DVD Player |
Product Description
8.5 inch A085FW01 V.1 480*234 LCD SCREEN
A085FW01 V1 Product details :
| AUO LCD SCREEN A085FW01 V1 | |
| Panel Brand | AUO |
| Model Name | A085FW01 V1 |
| Screen size | 8.5inches |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 480(RGB)×234, 63PPI |
| Pixel | RGB triangle |
| Display size | 187.2(Horizontal)×105.3(Vertical) mm |
| Outline(mm) | 199(W)×119(H) mm |
| Surface | Antiglare |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 300:1 (Typ.) (TM) |
| Work Mode | TN, normally white display, transmissive |
| Good View at | 6 o'clock |
| Viewing angle | 65/65/50/65 (Typ.)(CR≥10) |
| Responding | 12/18 (Typ.)(Tr/Td) |
| Backlight type | CCFL [1 pcs], 15K hours, no driver |
| Screen weight | 235±10g |
| Used for | Automotive Display Digital Photo Frame Portable DVD Player |
| Touchscreen | Without |
| Signal system | TFT Specific Analog RGB, 26 pins, FPC |
| Supply voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Maximum | Working temperature: -30 ~ 80 °C; Storage temperature: -30 ~ 85 °C |
| 8.5 inch A085FW01 V.1 480*234 LCD SCREEN | |
A085FW01 V1 Specifications:
> Fast delivery
> Original & Brand New
> Best price
> Good quality
> Excellent service
> new and original; we offer high quality, fast delivery, competitive price for our customers;
> Please send your RFQ(request for quoting) to get latest price;
> We will ship the items within 2 working days after receive the payment;
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
A085FW01 V1 Refunds & Return:
We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us.
You must contact us before returning any product. Return must be in new condition(the SAME CONDITION as it was sent to you).
Hope to cooperate with you!
A085FW01 V1 Warranty :
1, We take 6 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
A085FW01 V1 FAQ:
Q: When will my order 8.5 inch lcd panel A085FW01 V1 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 8.5 inch lcd panel A085FW01 V1 before shipping?
A: Don't Worry , The A085FW01 V1 was tested ok before shipping.
Q: What happen if A085FW01 V1 I received can't work ?
A: The LA085FW01 V1 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
