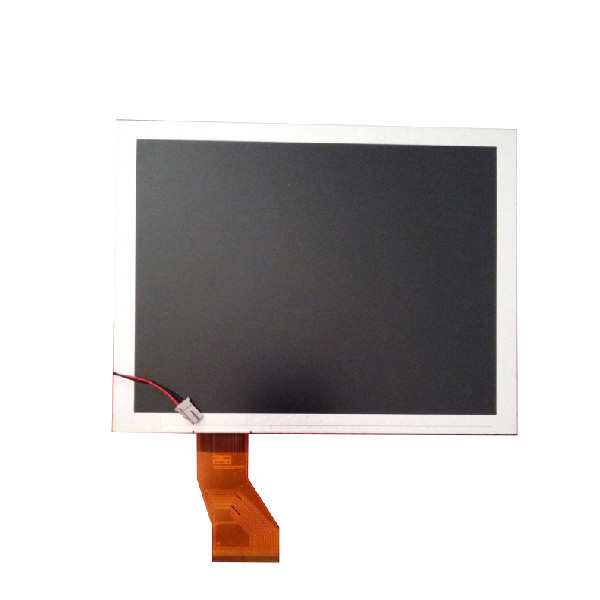

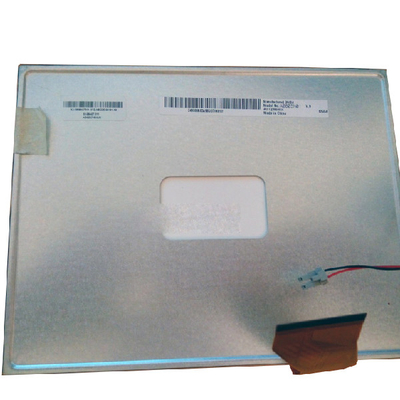

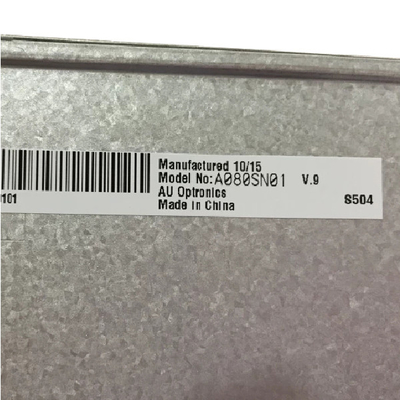

RGB Vertical Stripe A080SN01 V9 800*600 LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A080SN01 V9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A080SN01 V9 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 125PPI | Active Area: | 162(W)×121.5(H) Mm |
| Bezel Opening: | 163.8(W)×123.3(H) Mm | Outline Size: | 183(W)×141(H) Mm |
| Weight: | 235±10g | Application: | Digital Photo Frame Portable DVD Player |
Product Description
RGB Vertical Stripe A080SN01 V9 800*600 LCD SCREEN
A080SN01 V9 Product details :
| AUO LCD SCREEN A080SN01 V9 | |
| Panel Brand | AUO |
| Panel Model | A080SN01 V9 |
| Panel Size | 8.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600, SVGA, 125PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 162(W)×121.5(H) mm |
| Bezel Opening | 163.8(W)×123.3(H) mm |
| Outline Size | 183(W)×141(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 270 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Best View on | 6 o'clock |
| Viewing Angle | 70/70/60/65 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 4/16 (Typ.)(Tr/Td) ms |
| Display Colors | 262K/16.7M , 50% NTSC |
| Lamp Type | 9S3P WLED , 10K hours, no driver |
| Frequency | 60Hz |
| Panel Weight | 235±10g |
| Touch Screen | Without |
| Application | Digital Photo Frame Portable DVD Player |
| Signal Interface | TTL (1 ch, 6/8-bit) + SPI , 60 pins , FPC |
| Input Voltage | 3.3/11.68/15/-6.75V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Working: -10 ~ 60 °C ; Storage: -20 ~ 70 °C |
| RGB Vertical Stripe A080SN01 V9 800*600 LCD SCREEN | |
A080SN01 V9 Shipping:
1. We will test them strictly before shipment.
2. We will only pay the shipping cost and tax for our country, if there is any shipping cost and tax in your country, you should pay for it.
3. We will send it within 3 business days after we receive the order.
4. Delivery time will normally be 8 to 50 days, which will be different for different countries. You can choose AliExpress Standard Shipping, it is faster than others.
5. * The United States, United Kingdom and Australia can take between 7 and 30 working days.
6. * Canada may take 8-35 business days.
7. * France / Spain / Germany may take 8-30 business days.
8. * Eastern Europe may take 16-30 business days.
9. * Italy / Brazil / South America may take 30-50 business days.
10. * shipped by DHL Express: 8-12 business days (you need to pay extra fee).
A080SN01 V9 Guarantee and Refund:
1. All items are in good condition.
2. If the item is defective ( rarely happen ), please inform us within 3 days after you receive it and return it withinwarranty period (12 months)
3. Returned items should have original packaging and in good condition if possible. Please provide us the tracking number and the returning reason.
A080SN01 V9 Quality and Guarantee and customs for free:
1. If you have problems for 1 month after you rec eive your item, you can talk with us, we will try our best to offer you the best solution.
2.if you buy the wrong items or you do not want t he item that you bought, you can return it back to us within 3 days, but you have to offer the shippin g cost.
3.we will be the best price to sell you the product, the price does not include customs fees, if the parcel caused by customs costs, you have to pay yourself.
4. If you do not receive the package after deli very, please contact us, we will work with the problem.
A080SN01 V9 FAQ:
Q: If I order A080SN01 V9 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for A080SN01 V9 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of A080SN01 V9 ?
A: Of course!If you make a large order, we will give you a discount.
Q:Can You declare my order of A080SN01 V9 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of A080SN01 V9 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of A080SN01 V9 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
A080SN01 V9 Shipping and Package :
