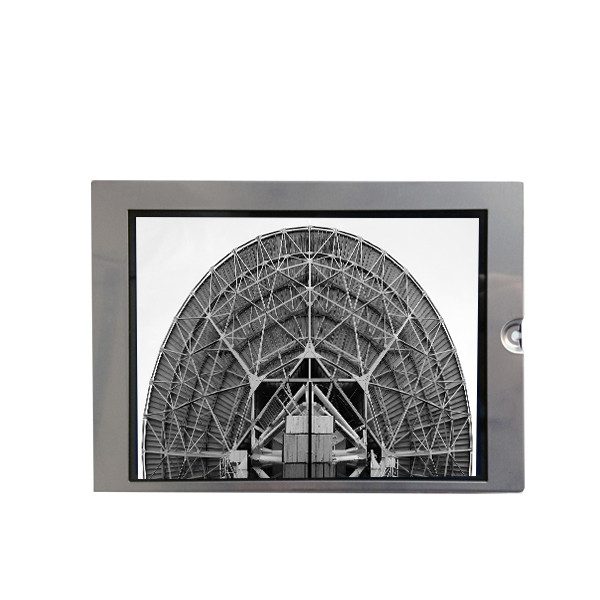

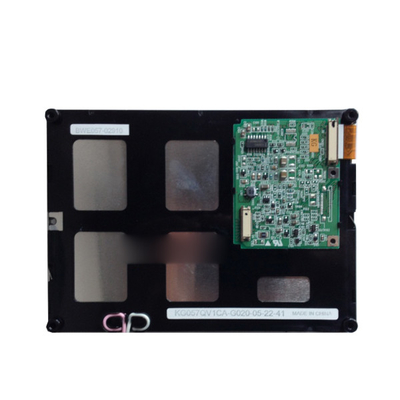

5.7 inch tft lcd screen 320*240 lcd Display Panel KG057QV1CA-G020 lcd module
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KG057QV1CA-G020 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KG057QV1CA-G020 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320×240, QVGA 70PPI | Active Area: | 115.18(W)×86.38(H) Mm |
| Bezel Opening: | 119.4(W)×90.6(H) Mm | Outline Dim.: | 144(H)×104.8(V)×13.2(D) Mm |
| Weight: | 175g | Designed For: | Industrial |
Product Description
5.7 inch tft lcd screen 320*240 lcd Display Panel KG057QV1CA-G020 lcd module
KG057QV1CA-G020 Product details :
| kyocera LCD SCREEN KG057QV1CA-G020 | |
|---|---|
| Panel Brand | kyocera |
| Panel Model | KG057QV1CA-G020 |
| Panel Size | 5.7 inches |
| Panel Type | STN-LCD , Liquid Crystal Module |
| Resolution | 320×240, QVGA, 70PPI |
| Pixel Format | rectangle |
| Display Area | 115.18(W)×86.38(H) mm |
| Bezel Opening | 119.4(W)×90.6(H) mm |
| Outline Size | 144(W)×104.8(H) ×13.2(D) mm |
| Surface | Specular (Haze 0%) |
| Brightness | 260 cd/m² (Typ.) |
| Contrast Ratio | 4:1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.) (CR≥2) |
| Display Mode | STN, Blue Mode - Negative, Transmissive |
| Response Time | 380/120 (Typ.)(Tr/Td) ms |
| Display Colors | monochrome |
| Lamp Type | 1 pcs CCFL , 58K hours, without driver |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 175g (Typ.) |
| Application | Industrial |
| Signal Interface | Parallel Data (4-bit) , 20 pins , terminal |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 60 °C |
| 5.7 inch tft lcd screen 320*240 lcd Display Panel KG057QV1CA-G020 lcd module | |
KG057QV1CA-G020 Important:
Specific machine models have various sizes and resolutions. The machine LCD resolution should not be upgraded or degraded. Before purchasing, you must confirm that the size and resolution of this screen match your machine! Unable to return due to improper installation or incompatibility.
KG057QV1CA-G020 Shipping and Package :
KG057QV1CA-G020 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
For faster delivery,please contact us for express details.
2.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.
KG057QV1CA-G020 Package and shipping time:
we have professional team packages that will package your package more strongly and let it get to you s afely, so you do not have to worry about it.
1. epacket: It usually takes 10-20 working days to receive the parcel.
2. EMS: It usually takes 7-10 business days to receive the parcel.
3. DHL: It usually takes 5-7 business days to recei ve the parcel.
4. China post: It usually takes 15-40 days, Brazil can take several days to receive the parcel.
KG057QV1CA-G020 Warranty & Maintenance:
We offer the 1month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return.We also provide 12monthfree maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
KG057QV1CA-G020 Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
4. Bulk order is acceptable, lower prices will be offered to you for bulk order.
KG057QV1CA-G020 FAQ:
Q: How to make payment for KG057QV1CA-G020 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of KG057QV1CA-G020 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of KG057QV1CA-G020 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of KG057QV1CA-G020 ?
A: Of course!If you make a large order, we will give you a discount.
