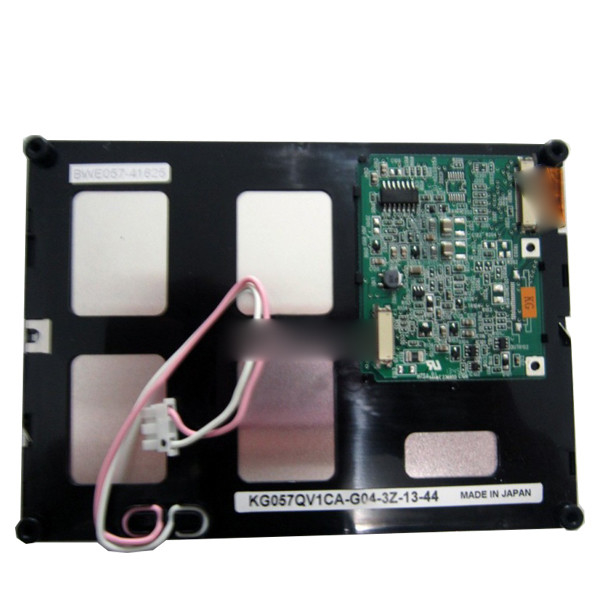

New and original LCD KG057QV1CA-G04 5.7 inch lcd display module 320*240 lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KG057QV1CA-G04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KG057QV1CA-G04 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320×240, QVGA 70PPI | Active Area: | 115.18(W)×86.38(H) Mm |
| Bezel Opening: | 119.4(W)×90.6(H) Mm | Outline(mm): | 144 × 104.8 × 13.2 (H×V×D) |
| Mass: | 175g | Used For: | Industrial |
Product Description
New and original LCD KG057QV1CA-G04 5.7 inch lcd display module 320*240 lcd screen
KG057QV1CA-G04 Product details :
| kyocera LCD SCREEN KG057QV1CA-G04 | |
|---|---|
| Panel Brand | kyocera |
| Panel Model | KG057QV1CA-G04 |
| Panel Size | 5.7 inches |
| Panel Type | STN-LCD, LCM |
| Resolution | 320×240, QVGA, 70PPI |
| Pixel Format | rectangle |
| Display Area | 115.18 × 86.38 mm (H×V) |
| Bezel Opening | 119.4 × 90.6 mm (H×V) |
| Outline Size | 144 × 104.8 × 13.2 mm (H×V×D) |
| Surface | Specular (Haze 0%) |
| Brightness | 260 cd/m² (Typ.) |
| Contrast Ratio | 4:1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.) (CR≥2) |
| Display Mode | STN, Blue Mode - Negative, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 380/120 (Typ.)(Tr/Td) ms |
| Display Colors | monochrome |
| Lamp Type | 1 pcs CCFL , 58K hours, without driver |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 175g (Typ.) |
| Application | Industrial |
| Signal Interface | Parallel Data (4-bit) , 20 pins , terminal |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 60 °C |
| New and original LCD KG057QV1CA-G04 5.7 inch lcd display module 320*240 lcd screen | |
KG057QV1CA-G04 Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
KG057QV1CA-G04 Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
KG057QV1CA-G04 Shipping and Package :
KG057QV1CA-G04 About Shipping:
we will test them strictly before shipping.
we will ship it in 1 working day after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
KG057QV1CA-G04 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
KG057QV1CA-G04 FAQ:
Q: How long is the warranty of Kyocera KG057QV1CA-G04 ?
A: 90 days warranty .
Q: How can I trace my order of KG057QV1CA-G04 ?
A: we will give you tracking number then you can trace your order form website.
Q: How do you ship my goods KG057QV1CA-G04 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
