KCS6448ESTT-X1 7.7 inch screen 640*480 lcd display screen for Kyocera
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCS6448ESTT-X1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCS6448ESTT-X1 | Diagonal Size: | 7.7" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 103PPI | Active Area: | 157.42(W)×118.06(H) Mm |
| Bezel Opening: | 160.42(W)×121.06(H) Mm | Outline(mm): | 199 × 147 × 10.5 (H×V×D) |
| Response: | 160/80 (Typ.)(Tr/Td) Ms | Used For: | Industrial |
Product Description

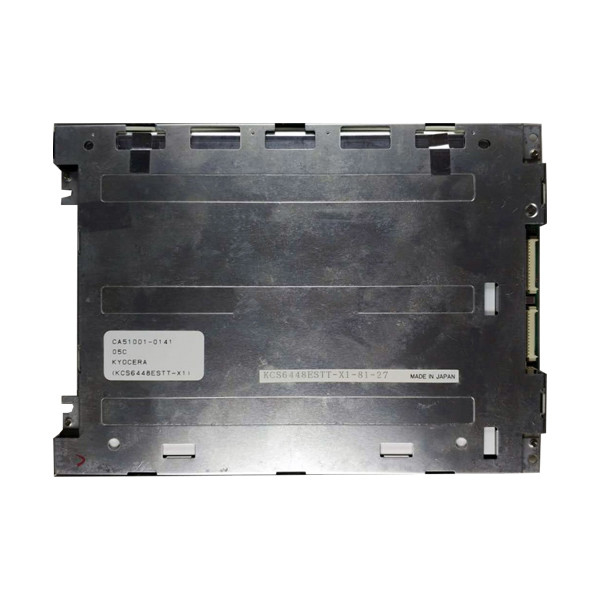

KCS6448ESTT-X1 7.7 inch screen 640*480 lcd display screen for Kyocera
KCS6448ESTT-X1 Product details :
| Kyocera LCD SCREEN KCS6448ESTT-X1 | |
|---|---|
| manufacturer | Kyocera |
| Model Name | KCS6448ESTT-X1 |
| screen size | 7.7 inch |
| Screen type | CSTN-LCD, LCM |
| Resolution | 640(RGB)×480, VGA, 103PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 157.42(W)×118.06(H) mm |
| physical dimension | 199(W)×147(H) ×10.5(D) mm |
| Visual size | 160.42(W)×121.06(H) mm |
| surface treatment | Antiglare |
| Contrast | 20:1 (Typ.) (TM) |
| Optical mode | STN, Normally Black, Transmissive |
| Viewing angle | 50/50/40/30 (Typ.)(CR≥2) |
| Responding time | 160/80 (Typ.)(Tr/Td) |
| Number of color | Color |
| Backlight type | CCFL |
| Apply to | Industrial |
| Refresh rate | 75Hz |
| Touch function | No touch |
| signal system | Parallel Data (8-bit) , 29 pins Connector |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| KCS6448ESTT-X1 7.7 inch screen 640*480 lcd display screen for Kyocera | |
KCS6448ESTT-X1 Ransaction:
• if the buyer cannot find the same product, the buyer can send us the product and model, and we will provide it for you.
• 100% new meaning new product.95% new and 90% new meaning second-hand products,All products good working,tested before shipping.
• After installation, if not working, please contact us as soon as possible, and our engineers will help you solve the problem.
• at the time of delivery, please verify the correctness and completeness of the goods. If the goods are wrong or damaged, please refuse to sign and contact us.
KCS6448ESTT-X1 Shipping and Package :
KCS6448ESTT-X1 Shipping:
1, Pls make sure the model you need is the exact model you ordered. We shipping according to the ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
5, LCD will be sent by EMS/DHL/UPS/ according to the place or customer choice.
EMS takes around 10-15 business days to arrive.
DHL/UPS take around 3-5 business days to arrive.
Russian customer attention: We can only send by EMS to Russia, EMS usually takes more days to arrive, so your patience is really appreciated.
KCS6448ESTT-X1 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
KCS6448ESTT-X1 PROMISE:
We offer 100% Customer Satisfaction,if you have any questions , please let us know and we will do our best to rectify the situation.We fully stand behind with all the items that we are selling.
KCS6448ESTT-X1 FAQ:
Q: How long the warranty of KCS6448ESTT-X1 ?
A: 90 DAYS.
Q: How to order lcd panel KCS6448ESTT-X1 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will ship my order of Kyocera KCS6448ESTT-X1 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: What happen if Kyocera tft-lcd KCS6448ESTT-X1 I received can't work ?
A: Our Kyocera KCS6448ESTT-X1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
