A070VW04 V3 with driver board lcd display 7 inch 800*480 WLED lcd monitor

Brand Name:	AUO
Model Number:	A070VW04 V3
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model P/N:

A070VW04 V3

Diagonal Size:

Resolution:

800(RGB)×480, WVGA 133PPI

Active Area:

152.4(W)×91.44(H) Mm

Outline(mm):

164(W)×103(H) ×5.4(D) Mm

Brightness:

200 Cd/m² (Typ.)

Viewing Angle:

65/65/50/65 (Typ.)(CR≥10)

Designed For:

Digital Photo Frame Portable DVD Player MP3 PMP

Supply Ability:

100000 Unit/Units per Month

Product Description

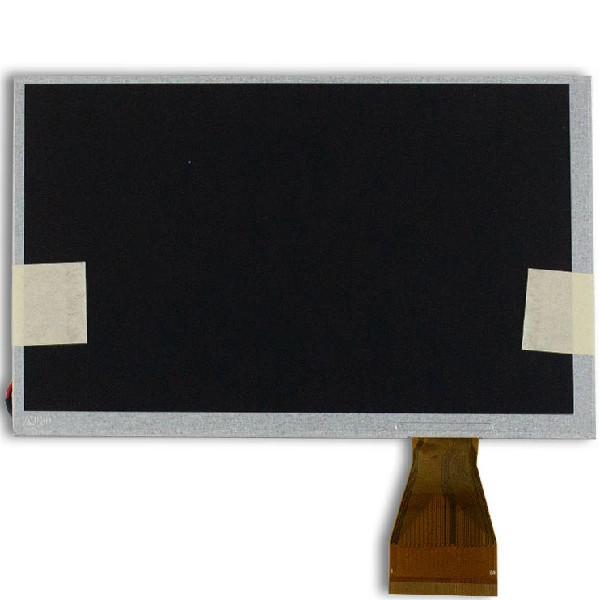

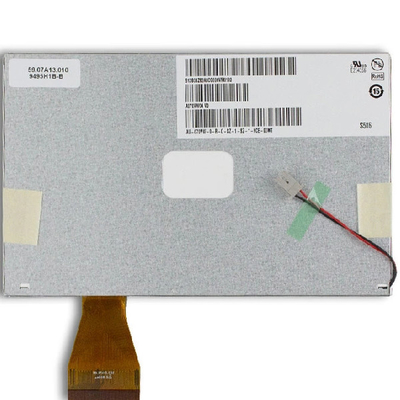

A070VW04 V3 with driver board lcd display 7 inch 800*480 WLED lcd monitor

A070VW04 V3 Product details :

AUO LCD SCREEN A070VW04 V3
Panel Brand	AUO
Model Name	A070VW04 V3
Screen size	7.0 inch
Screen type	a-Si TFT-LCD, LCD module
Resolution	800(RGB)×480, WVGA 133PPI
Pixel	RGB Vertical Stripe
Display size	152.4(W)×91.44(H) mm
Outline Dim.	164(W)×103(H) ×5.4(D) mm
Visual size	154.6(W)×93.44(H) mm
Surface	Antiglare
Brightness	200 cd/m² (Typ.)
Contrast	300:1 (Typ.) (TM)
Optical mode	TN, Normally White, Transmissive
Viewing angle	65/65/50/65 (Typ.)(CR≥10)
Responding	12/18 (Typ.)(Tr/Td)
Backlight type	3S7P WLED, 10K hours, without driver
Screen weight	154±14g
Apply to	16.7M
Touch function	No touch
Designed For	Digital Photo Frame Portable DVD Player MP3 PMP
Frame Rate	55Hz
Signal system	Parallel RGB (1 ch, 8-bit) + SPI, 60 pins, FPC
Supply voltage	3.3/11/18/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Maximum	Working: 0 ~ 60 °C; Storage: -10 ~ 70 °C
A070VW04 V3 with driver board lcd display 7 inch 800*480 WLED lcd monitor

A070VW04 V3 Customer Service Policy

We are more than happy to answer any questions that you have, please contact with

1:Orders processed timely after the payment verification.

2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.

A070VW04 V3 Payment:

1.we acceptant payment method:Tl,paypal,credit card,Escrow,western union and others.

2.Full payment must be paid within 3days after order confirmed.

3.The buyer is responsable for any tax/or duty charged by theircountry.

A070VW04 V3 SHIPPING METHOD:

FAST SECURITY

1.We will ship all your order within 3 working days after receiving your payment. Otherwise, we will state it in the invoice in advance.

2.DHL, FedEx,TNT,UPS, EMS, China Post,Hong-kong Post,EUB arel available.

3.Please make sure your delivery address and contact telephone number are correct when you bid the item.

A070VW04 V3 Return:

1.Customer has 7 days to inspectinstal the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period

2.Customer may exchange for same exact product within 90-day , when t s determined defects. When exchanging for a diferent product,customer is corisidered fo conduct two separate transactions, a return and a purchas

A070VW04 V3 FAQ:

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Do you accept the sample order of A070VW04 V3 ?

A: Yes, Welcome !

Q: How long the warranty of A070VW04 V3 ?

A: 90 days .

Q: What happen if the A070VW04 V3 received can't work ?

A: Our A070VW04 V3 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
