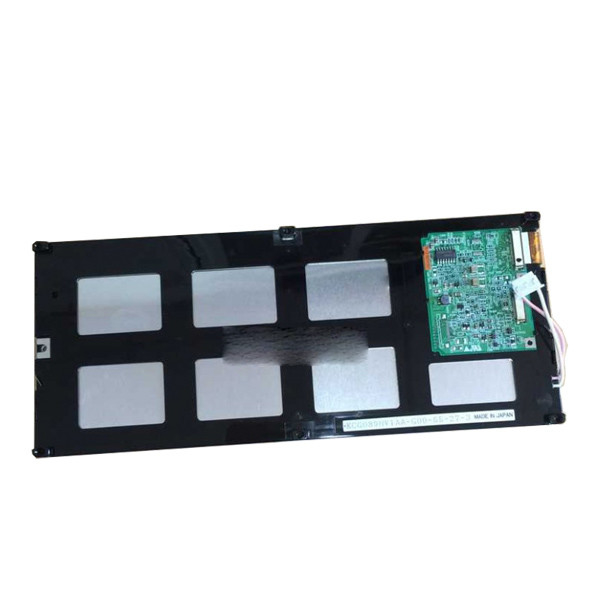

New and original KCG089HV1AA-G00 8.9 inch screen 640*240 lcd panel lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCG089HV1AA-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCG089HV1AA-G00 | Diagonal Size: | 8.9" |
|---|---|---|---|
| Panel Type: | CSTN-LCD, LCM | Resolution: | 640(RGB)×240, HVGA 76PPI |
| Active Area: | 211.18(W)×79.18(H) Mm | Bezel Opening: | 218.4(W)×86.4(H) Mm |
| Outline Size: | 246(W)×103(H) ×12.2(D) Mm | Application: | Industrial |
Product Description
New and original KCG089HV1AA-G00 8.9 inch screen 640*240 lcd panel lcd screen
KCG089HV1AA-G00 Product details :
| kyocera LCD SCREEN KCG089HV1AA-G00 | |
|---|---|
| Panel Brand | kyocera |
| Panel Model | KCG089HV1AA-G00 |
| Panel Size | 8.9 inches |
| Panel Type | CSTN-LCD , Liquid Crystal Module; |
| Resolution | 640(RGB)×240[HVGA]76PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.18 × 79.18 mm (H×V) |
| Bezel Opening | 218.4 × 86.4 mm (H×V) |
| Outline Size | 246 × 103 × 12.2 mm (H×V×D) |
| Surface | Specular (Haze 0%) |
| Brightness | 150 (Typ.) |
| Contrast Ratio | 30:1 (Typ.) (Transmission) |
| Viewing Angle | 50/50/30/20 (Typ.) (CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Response Time | 190/180 (Typ.)(Tr/Td) ms |
| Display Colors | Color, 38% NTSC |
| Lamp Type | CCFL [1 pcs] , 54K hours , Optional |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 250g (Typ.) |
| Designed For | Industrial |
| Signal Interface | Parallel Data (8-bit) , 20 pins , terminal |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| New and original KCG089HV1AA-G00 8.9 inch screen 640*240 lcd panel lcd screen | |
KCG089HV1AA-G00 Payment:
1: We accept Alipay, PayPal, Western Union, TT here
2: All major credit cards are accepted through secure payment proces- sor ESCROW
3: Please make sure you read the entire description and agree to the transaction before buying
KCG089HV1AA-G00 Shipping and Package :
KCG089HV1AA-G00 Shipping Detail:
1: Please confirm your ADDRESS carefully once you make the order.We will send the products to you at once after the payment is received.
2: Items are shipped from China using airmail;reach most of the coun- tries within 15-30 business days.
3: Please contact us if you don't receive the products in 45 days. And please give us 3 working days for checking the undelivered package andthe reason. If it is our problem,we will refund the money to you.
KCG089HV1AA-G00 Returns:
1: A full refund will be given if items are returned in their original condition.
2: Merchandise which is damaged or missing components is not re- fundable.
KCG089HV1AA-G00 Other Policies:
1: We are not responsible for any custom duty or import tax.
2: All emails will be answered within 24 hours. If you don' t receive our reply,please kindly re-sent your email and we will reply to you .
KCG089HV1AA-G00 FAQ:
Q: If I place order now,when will you ship the goods of KCG089HV1AA-G00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of KCG089HV1AA-G00 ?
A: Of course!sample order is welcome !
Q: Can You declare my order of KCG089HV1AA-G00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of KCG089HV1AA-G00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
