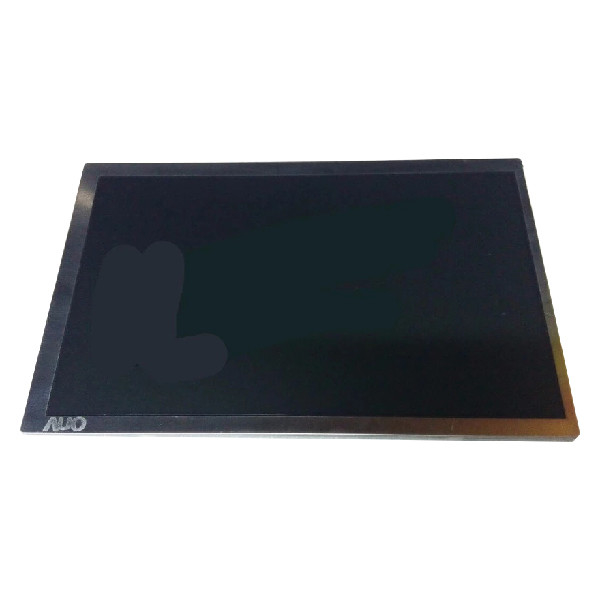

7.0 inch A070VW02 V0 800*480 LCE SCREEN FOR MID UMPC MP3 PMP
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070VW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070VW02 V0 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA, 133PPI | Active Area: | 152.4(W)×91.44(H) Mm |
| Outline Size: | 165(W)×106(H)×6.9(D) Mm | Contrast: | 240:1 (Typ.) (TM) |
| Responding: | 12/18 (Typ.)(Tr/Td) Ms | Used For: | MID UMPC MP3 PMP |
Product Description
7.0 inch A070VW02 V0 800*480 LCE SCREEN FOR MID UMPC MP3 PMP
A070VW02 V0 Product details :
| AUO LCD SCREEN A070VW02 V0 | |
| Panel Brand | AUO |
| Panel Model | A070VW02 V0 |
| Panel Size | 7.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×480, WVGA, 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.6(W)×93.64(H) mm |
| Outline Size | 165(W)×106(H)×6.9(D) mm |
| Surface | Antiglare (Haze 8%) |
| Brightness | 180 cd/m² (Typ.) |
| Contrast Ratio | 240:1 (Typ.) (TM) |
| Viewing Angle | 60/60/40/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | 262K |
| Lamp Type | 2S1P WLED , 10K hours, without driv |
| Frequency | 60Hz |
| Panel Weight | 165±17g |
| Designed For | MID UMPC MP3 PMP |
| Touch Panel | 4-wire Resistive Touch |
| Signal Interface | LVDS (1 ch, 6-bit) 20 pins Connector |
| Environment | Operating temperature: -10 ~ 60 °C ; Storage temperature: -20 ~ 70 °C |
| 7.0 inch A070VW02 V0 800*480 LCE SCREEN FOR MID UMPC MP3 PMP | |
A070VW02 V0 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
A070VW02 V0 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
A070VW02 V0 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
A070VW02 V0 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
A070VW02 V0 FAQ:
Q: How long is the warranty of A070VW02 V0 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of A070VW02 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for A070VW02 V0 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of A070VW02 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
