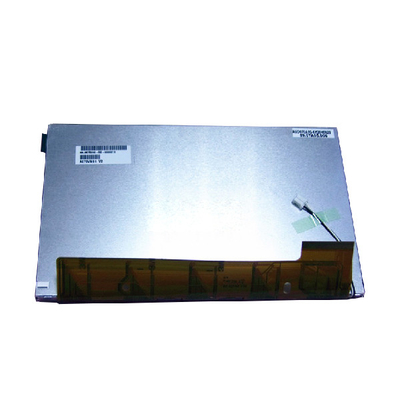

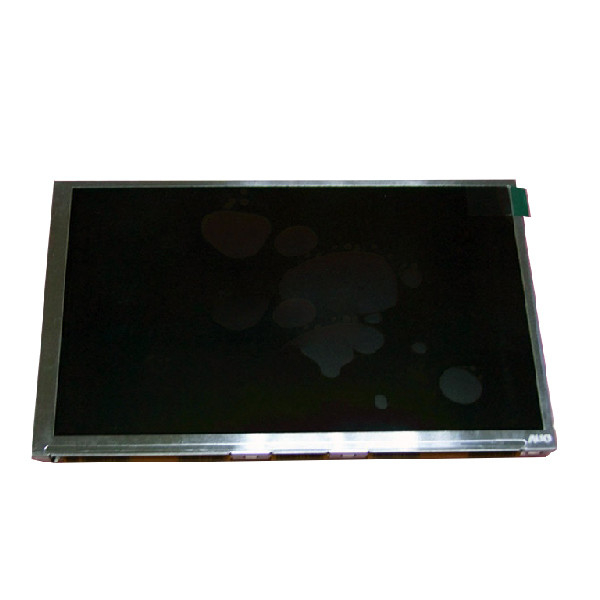

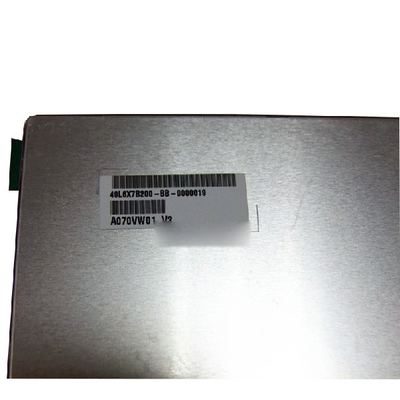

7.0 inch TFT A070VW01 V2 800*600 LCD Display Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070VW01 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070VW01 V2 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA,133PPI | Active Area: | 152.4(W)×91.44(H) Mm |
| Brightness: | 330 Cd/m² (Typ.) | Contrast: | 300:1 (Typ.) (TM) |
| Responding: | 12/18 (Typ.)(Tr/Td) | Used For: | Portable DVD Player |
Product Description
7.0 inch TFT A070VW01 V2 800*600 LCD Display Screen Panel
A070VW01 V2 Product details :
| AUO LCD SCREEN A070VW01 V2 | |
| Panel Brand | AUO |
| Model Name | A070VW01 V2 |
| Screen size | 7.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600, SVGA,133PPI |
| Pixel | RGB Vertical Stripe |
| Display size | 152.4(W)×91.44(H) mm |
| Brightness | 330 cd/m² (Typ.) |
| Contrast | 300:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 60/60/40/60 (Typ.)(CR≥10) |
| Responding | 12/18 (Typ.)(Tr/Td) |
| Number of | 262K |
| Backlight | WLED |
| Used for | Portable DVD Player |
| Signal Type | TTL (1 ch, 6-bit) |
| Maximum | - Operating Temp.: 0 ~ 60 °C |
| 7.0 inch TFT A070VW01 V2 800*600 LCD Display Screen Panel | |
A070VW01 V2 Notice:
Prior to the order, please check and confirm whehter the screen size, resolution, backlight type, Interface type and location can be applied to your laptop, if you have no idea, please ask us freely.
Please give us your correct contact details so that you can receive the items as early as possible.
A070VW01 V2 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
A070VW01 V2 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
A070VW01 V2 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
A070VW01 V2 FAQ:
Q: When will my order 7.0 inch lcd panel A070VW01 V2 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 7.0 inch lcd panel A070VW01 V2 before shipping?
A: Don't Worry , The A070VW01 V2 was tested ok before shipping.
Q: What happen if A070VW01 V2 I received can't work ?
A: The A070VW01 V2 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
A070VW01 V2 Shipping and Package :
