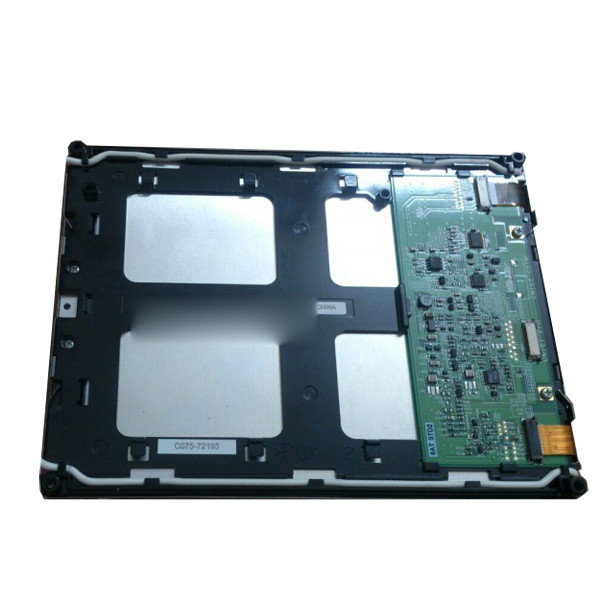

Kyocera KCG075VG2BE-G00 7.5 inch screen 640*480 lcd display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCG075VG2BE-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCG075VG2BE-G00 | Diagonal Size: | 7.5" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 107PPI | Active Area: | 151.68(W)×113.76(H) Mm |
| Outline Dim.: | 156.3(W)×118.4(H) Mm | Outline Size: | 184(W)×139.8(H)×13.2(D) Mm |
| Mass: | 280g (Typ.) | Used For: | Industrial |
Product Description
Kyocera KCG075VG2BE-G00 7.5 inch screen 640*480 lcd display panel
KCG075VG2BE-G00 Product details :
| kyocera LCD SCREEN KCG075VG2BE-G00 | |
|---|---|
| Panel Brand | kyocera |
| Panel Model | KCG075VG2BE-G00 |
| Panel Size | 7.5 inches |
| Panel Type | LCM, CSTN-LCD |
| Resolution | 640(RGB)×480[VGA] 107PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 151.68 × 113.76 mm (H×V) |
| Bezel Opening | 156.3 × 118.4 mm (H×V) |
| Outline Size | 184 × 139.8 × 13.2 mm (H×V×D) |
| Surface | Specular (Haze 0%) |
| Brightness | 200 (Typ.) |
| Contrast Ratio | 30:1 (Typ.) (Transmission) |
| Viewing Angle | 40/40/20/40 (Typ.) (CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Response Time | 270/280 (Typ.)(Tr/Td) ms |
| Display Colors | Color, 48% NTSC |
| Lamp Type | 2 pcs CCFL , 58K hours, optional |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 280g (Typ.) |
| Used for | Industrial |
| Signal Interface | Parallel Data (8-bit) , 20 pins , terminal |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 60 °C |
| Kyocera KCG075VG2BE-G00 7.5 inch screen 640*480 lcd display panel | |
KCG075VG2BE-G00 Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
KCG075VG2BE-G00 Shipping and Package :
KCG075VG2BE-G00 Packing:
Product you ordered comes with protective package. Use anti-static bag,anti-shock bubble bag.
clean carton box and foam to avoid any damage during international shipping.
KCG075VG2BE-G00 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
KCG075VG2BE-G00 Warranty:
All products are guaranteed for half a year. Artificial damage is not covered by the warranty. All products have special warranty labels. Please do not damage the labels. Without warranty labels, no warranty can be provided.
KCG075VG2BE-G00 Return:
If you receive a damaged or wrong item , please contact us via message , we will arrange return immediately. Please do not leave negative feedback or open any cases before contacting us.
Return is accepted within 30 days after receiving of the item.
When doing the return , please pack the product safely like how we do in the original package. As the screens are very fragile.Please do not use other package.
Buyer is responsible for the return shipping cost in the cases of buyer purchasing wrong products , wrong size ,etc..
KCG075VG2BE-G00 FAQ:
Q: Do you accept the sample order of KCG075VG2BE-G00 ?
A: 90 days.
Q: What happen if Kyocera lcd screen KCG075VG2BE-G00 received can't work ?
A: lcd panel KCG075VG2BE-G00 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: What shipping methods you have for my order KCG075VG2BE-G00 ?
A: DHL , FEDEX, EMS ...
Q: can you declared low price of my order TFT-LCD KCG075VG2BE-G00 when shipping?
A: Yes , please inform us the value you want .
