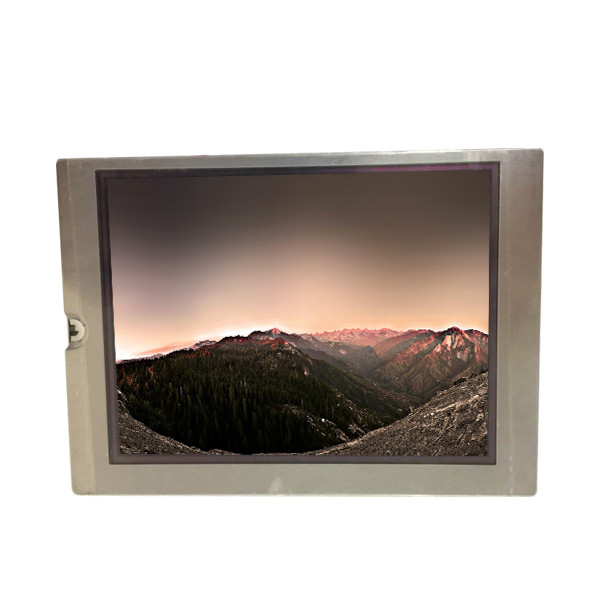

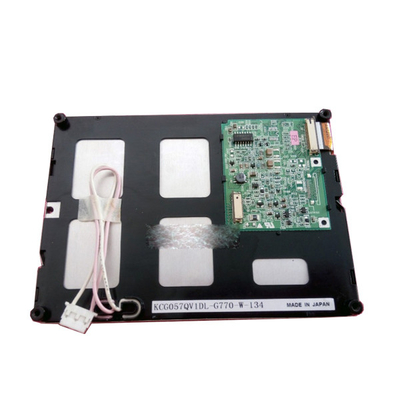

Kyocera KCG057QV1DL-G770 LCD Screen Display Panel For 5.7 inch 320(RGB)*240 CSTN Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCG057QV1DL-G770 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCG057QV1DL-G770 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | CSTN-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
| Active Area: | 115.2(W)×86.4(H) Mm | Bezel Opening: | 119.4(W)×90.6(H) Mm |
| Outline Dim.: | 144(W)×104.8(H)×15.3(D) Mm | Designed For: | Industrial |
Product Description
Kyocera KCG057QV1DL-G770 LCD Screen Display Panel For 5.7 inch 320(RGB)*240 CSTN Screen
KCG057QV1DL-G770 Product details :
| kyocera LCD SCREEN KCG057QV1DL-G770 | |
|---|---|
| Panel Brand | kyocera |
| Panel Model | KCG057QV1DL-G770 |
| Panel Size | 5.7 inches |
| Panel Type | LCM, CSTN-LCD |
| Resolution | 320(RGB)×240 QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2(horizontal)×86.4(vertical) mm |
| Bezel Opening | 119.4(horizontal)×90.6(vertical) mm |
| Outline Size | 144 (horizontal) × 104.8 (vertical) × 15.3 (thickness) mm |
| Surface | Hard coating (2H) |
| Contrast Ratio | 55:1 (Typ.) (Transmission) |
| Viewing Angle | 50/50/20/35 (Typ.) (CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Response Time | 180/170 (Typ.)(Tr/Td) ms |
| Display Colors | False Color |
| Lamp Type | CCFL [1pcs] |
| Frequency | 75Hz |
| Touch Screen | 4-wire Resistive Touch |
| Panel Weight | 220g (Typ.) |
| Designed For | Industrial |
| Signal Interface | Parallel Data (8-bit) terminal |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| Environment | Operating temperature: 0 ~ 60 °C ; Storage temperature: -20 ~ 60 °C |
| Kyocera KCG057QV1DL-G770 LCD Screen Display Panel For 5.7 inch 320(RGB)*240 CSTN Screen | |
KCG057QV1DL-G770 Notice:
1.Before installing the LCD screen, please turn off the power first, unplug the screen cable, and turn on the power after all the installation work is completed.
2.All panels will be sent out after strict testing to ensure that you can install them directly after receiving them.all panelsA+ grade no dead pixels
3.Please check the specific information of the Panel, we will ensure that the issued panel is fully compatible, if you are not sure about your specific panel, please send us the panel picture on your current machine to confirm, we will reply you as soon as possible.
4.If you are a professional and know the panel model you need, you can directly place an order to buy.
5.All panel will be packed by antistatic bag and box.
KCG057QV1DL-G770 Payment:
1.We can accept T/T and Western Union and Money order, the best way is direct order payment .you can choose your convenient payment terms. If you want other payment terms, please let us know before you order.
2.Full payment must be made within 7 days after placing your order, or the order will be invalid or cancelled by the system.
3.Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer’s information.
KCG057QV1DL-G770 Shipping and Package :
KCG057QV1DL-G770 Shipping Detail:
1:Please confirm your ADDRESS carefully once you make the order.We will send the products to you at once after the payment is received.
2:Please contact us if you don't receive the products in 45 days.Andplease give us 3working days for checking the undelivered package andthe reason. If it is our problem,we will refund the money to you.
KCG057QV1DL-G770 Returns:
1:A full refund will be given if items are returned in their original condition.
2:Merchandise which is ddamaged or missing components is not re- fundable.
KCG057QV1DL-G770 FAQ:
Q: How to order Kyocera LCD PANEL KCG057QV1DL-G770 ?
A: We accept the T/T , Western union , paypal .
Q: Can you declared low value for my order TFT-LCD KCG057QV1DL-G770 when shipping?
A: Yes, We can do it for you if you need.
Q: What happen if the LCD KCG057QV1DL-G770 I received can't work ?
A: Our item KCG057QV1DL-G770 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How long the warranty of Kyocera KCG057QV1DL-G770 ?
A: 90 days .
