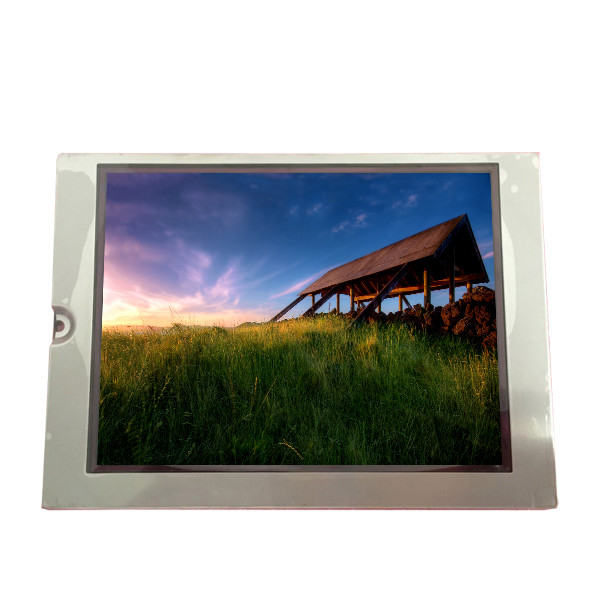

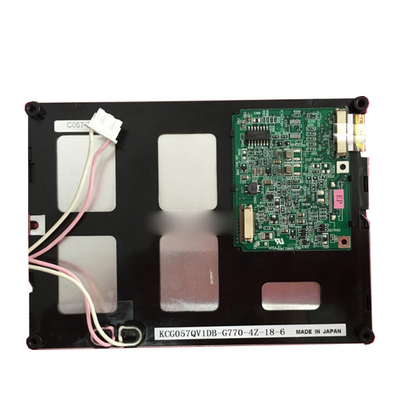

New and original LCD KCG057QV1DB-G770 5.7 inch LCD display screen panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCG057QV1DB-G770 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCG057QV1DB-G770 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA 70PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Bezel Opening: | 117.2(W)×88.4(H) Mm | Outline Dim.: | 144(W)×104.8(H)×13.2(D) Mm |
| Weight: | 175g (Typ.) | Designed For: | Industrial |
| Viewing Angle: | 55/55/60/75 (Typ.)(CR≥2) | Support Color: | Color 58% NTSC |
Product Description
New and original LCD KCG057QV1DB-G770 5.7 inch LCD display screen panel
KCG057QV1DB-G770 Product details :
| kyocera LCD SCREEN KCG057QV1DB-G760 | |
| Panel Brand | kyocera |
| Panel Model | KCG057QV1DB-G760 |
| Panel Size | 5.7 inches |
| Panel Type | LCM, CSTN-LCD |
| Resolution | 320(RGB)×240 QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2 × 86.4 mm (H×V) |
| Bezel Opening | 119.4 × 90.6 mm (H×V) |
| Outline Size | 144 × 104.8 × 13.2 mm (H×V×D) |
| Surface | Specular (Haze 0%) |
| Brightness | 380 cd/m² (Typ.) |
| Contrast Ratio | 40 : 1 (Typ.) [Transmission] |
| Viewing Angle | 50/50/50/70 (Typ.) (CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Response Time | 250/200 (Typ.)(Tr/Td) ms |
| Display Colors | Fake Color, 58% NTSC |
| Lamp Type | 1 pcs CCFL , 75K hours, optional |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 175g (Typ.) |
| Application | Industrial |
| Signal Interface | Parallel Data (8-bit) , 20 pins Connector |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| Environment | Operating temperature: 0 ~ 60 °C ; Storage temperature: -20 ~ 60 °C |
| New and original LCD KCG057QV1DB-G770 5.7 inch LCD display screen panel | |
KCG057QV1DB-G770 Hello friends, before you order:
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model and photo of your original screen;
Usually, the LED panel we send will be a compatible model, which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model.
All items are tested before shipment, excluding tape. If you need a specific model, please leave a message when ordering.
KCG057QV1DB-G770 Shipping and Package :
KCG057QV1DB-G770 Shipping:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once yourpayment is completed.(Under special circumstances, we will promptly notify you of the delivery time)
We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into yourcountry. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.
The shipping cost does not include any import taxes, and buyers are responsible for customs duties.
KCG057QV1DB-G770 After service:
We can accept a 5-days return without reasons, and promise a warranty of 90 days for this item, and the shipping cost of returning should be afforded by the buyer.
Such as man-made factors, natural disasters caused damage will not in our warranty. For example: the installed improper, Nick, the tube touch bad, feed, etc... Store the selling of commodities have posted the warranty fragile tags, such as warranty tags in guarantee period be torn up. Disconnect or loss shall be deemed to be giving up the warranty, and we shall not accept any responsibility. Please attention!
KCG057QV1DB-G770 FAQ:
Q: Do you accept the sample order of KCG057QV1DB-G770 ?
A: 90 days.
Q: What happen if Kyocera KCG057QV1DB-G770 I received can't work ?
A: lcd screen KCG057QV1DB-G770 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to order 5.7 inch Kyocera KCG057QV1DB-G770 ?
A: We accept the T/T , Western union , paypal .
Q: can you declared low price of my order TFT-LCD KCG057QV1DB-G770 when shipping?
A: Yes , please inform us the value you want .
