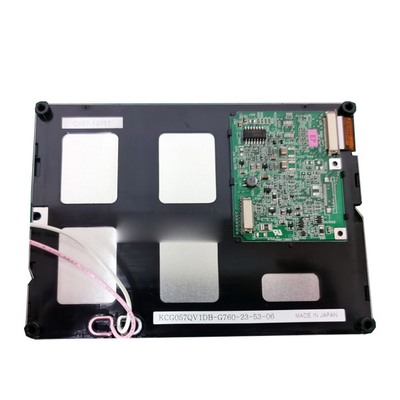

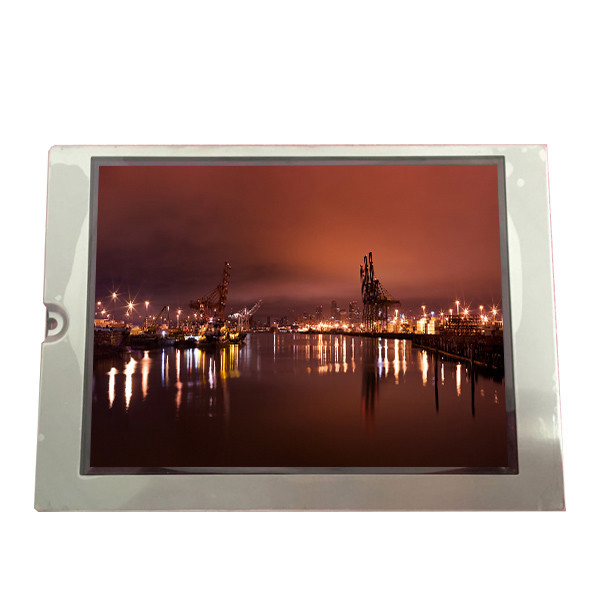

Original lcd screen 5.7 inch Industrial LCD Display Module KCG057QV1DB-G760
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCG057QV1DB-G760 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCG057QV1DB-G760 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA 70PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Bezel Opening: | 119.4(W)×90.6(H) Mm | Outline Dim.: | 144(H)×104.8(V)×13.2(D) Mm |
| Weight: | 175g | Designed For: | Industrial |
Product Description
Original lcd screen 5.7 inch Industrial LCD Display Module KCG057QV1DB-G760
KCG057QV1DB-G760 Product details :
| kyocera LCD SCREEN KCG057QV1DB-G760 | |
| Panel Brand | kyocera |
| Panel Model | KCG057QV1DB-G760 |
| Panel Size | 5.7 inches |
| Panel Type | LCM, CSTN-LCD |
| Resolution | 320(RGB)×240 QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2 × 86.4 mm (H×V) |
| Bezel Opening | 119.4 × 90.6 mm (H×V) |
| Outline Size | 144 × 104.8 × 13.2 mm (H×V×D) |
| Surface | Specular (Haze 0%) |
| Brightness | 380 cd/m² (Typ.) |
| Contrast Ratio | 40 : 1 (Typ.) [Transmission] |
| Viewing Angle | 50/50/50/70 (Typ.) (CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Response Time | 250/200 (Typ.)(Tr/Td) ms |
| Display Colors | Fake Color, 58% NTSC |
| Lamp Type | 1 pcs CCFL , 75K hours, optional |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 175g (Typ.) |
| Application | Industrial |
| Signal Interface | Parallel Data (8-bit) , 20 pins Connector |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| Environment | Operating temperature: 0 ~ 60 °C ; Storage temperature: -20 ~ 60 °C |
| Original lcd screen 5.7 inch Industrial LCD Display Module KCG057QV1DB-G760 | |
KCG057QV1DB-G760 Notice before purchase:
Please check whether your screen model, size and interface type are applicable.
If you are not sure which screen model you need, please be sure to contact customer service, we will reply to you within 24 hours! If you need to specify the model, please leave a message or contact customer service, thank you!
KCG057QV1DB-G760 Payment:
ESCROW, TT, Western Union or Paypal is available for you.
ALI will continue to update more payment methods.
When you submit your order you can choose the payment method that suits you.
KCG057QV1DB-G760 Shipping and Package :
KCG057QV1DB-G760 Shipping and Delivery Time:
1.We ship worldwide by DIL,UPS,TedEx,EMS,TNT,C-PacketlIK Post,SG Post,China Post etc.
2.We guarantee to ship out within 2 working days after payment confirmation(except Holiday).
3.We only ship to confirmed order address Your order address MUST MATCH your shipping address.
4.If you haven't received your shipment within 30 days after payment,please contact us.
We will track the shipment and get back to you as soon as possible.
KCG057QV1DB-G760 Returns:
1: A full refund will be given if items are returned in their original condition.
2: Merchandise which is damaged or missing components is not re-fundable.
3: Buyers are responsible for return shipping with proper packaging.
4: Once receiving items, we will refund you immediately.
KCG057QV1DB-G760 FAQ:
Q: If I order KCG057QV1DB-G760 now,when will you ship the goods ?
A: The order will be shipped within 1-2 working days after received your payment.
Q: Do you accept sample orders for KCG057QV1DB-G760 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of KCG057QV1DB-G760 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
