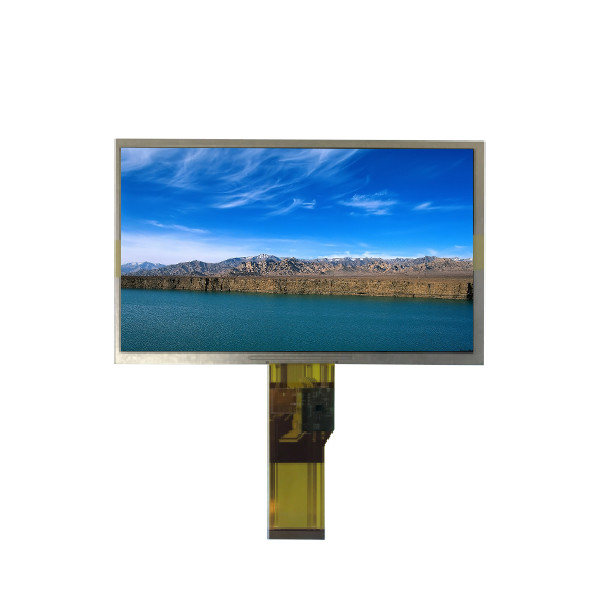

AUO LCD Screen A070VTN06.6 800*480 for Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070VTN06.6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070VTN06.6 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 134PPI | Display Size: | 154.08(W)×85.92(H) Mm |
| Outline Size: | 164.9(W)×100(H) ×6(D) Mm | Brightness: | 600 Cd/m² (Typ.) |
| Viewing Angle: | 60/60/40/60 (Typ.)(CR≥10) | Application: | Automotive Display |
Product Description
AUO LCD Screen A070VTN06.6 800*480 for Automotive Display
A070VTN06.6 Product details :
| AUO LCD Screen A070VTN06.6 | |
| Panel Brand | AUO |
| Panel Model | A070VTN06.6 |
| Diagonal Size | 7.0 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×85.92(H) mm |
| Bezel Opening | 157.1(W)×90.92(H) mm |
| Outline Size | 164.9(W)×100(H) ×6(D) mm |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M |
| Lamp Type | 7S2P WLED , 10K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 150g (Typ.) |
| Application | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| Input Voltage | 3.3/10.4/16.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
|
Environment
|
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| AUO LCD Screen A070VTN06.6 800*480 for Automotive Display | |
A070VTN06.6 About the shipping:
The recipient must be full name or company name.We use Aliexpresss standard transport EMS DHL, fedex, etc. You can choose the next order. if you want to quickly get parcel. Recommend the use of DHL or by EMS, if you choose the DHL transport. Some remote address DHL needs additional remote address for service. Fees paid by the buyer. Customs clearance fee, if any, shall be borne by the buyers.
After completion of the payment, the goods will be sent 1-3 working days. (part of the product according to the inventory needs more days)
A070VTN06.6 About the goods:
Receive delivery company products, please check whether the parcel in good face to face. If damaged packaging or product damage, please refuse and ask the photos to prove it. Photos are divided into two parts, divided into two parts. A customer himself as evidence, the other a
Courier company as a third party. Then when we received the Courier company send us the pictures of damaged products, we will find out is responsible for the damage to the product of the case. No third party evidence we can't pay for
A070VTN06.6 About the return:
Customers can be in within 90 days after receipt of the goods to replace the same product, when determine the defective. When the replacement of different products, customers are regarded as two independent trading, return and purchase
All without defects, do not need to order, error screen, screen return original goods cost 20% restocking fee will be charged. Return of the freight shall be borne by the buyers.
Return of the goods, please keep the original packing sound
If you have any questions, please don't open dispute, don't give us bad review. We will do our best to solve the problem and provide good after-sales service. Please keep in touch with us
A070VTN06.6 Other policies:
If you need a lot of quantity, please contact us, will give you a favorable price.
We are not responsible for all taxes and import duties.
Due to the time difference, all emails will be reply within 24 hours. Thank you for your understanding!
A070VTN06.6 FAQ:
Q: How to make payment of A070VTN06.6 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of A070VTN06.6 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of A070VTN06.6 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of A070VTN06.6 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
A070VTN06.6 Shipping and Package :
