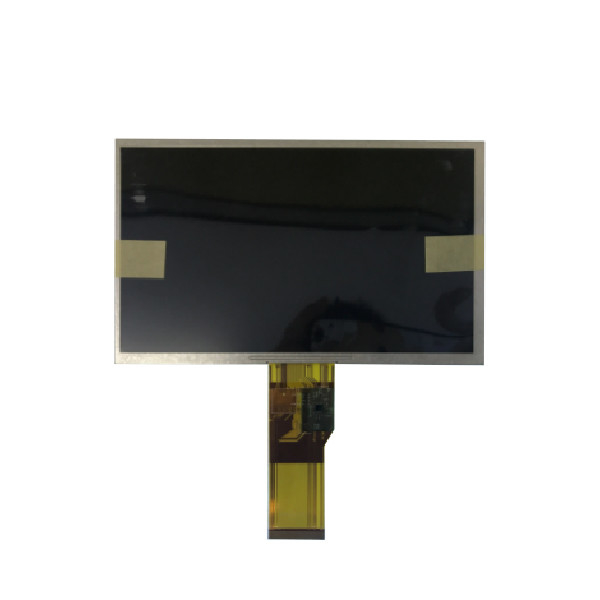

AUO 7.0 INCH A070VTN06.4 800*600 50 pins LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070VTN06.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070VTN06.4 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA,134PPI | Display Size: | 154.08(W)×85.92(H) Mm |
| Outline Size: | 164.9(W)×100(H) ×5.9(D) Mm | Brightness: | 500 Cd/m² (Typ.) |
| Viewing Angle: | 75/75/55/65 (Typ.)(CR≥10) | Application: | Industrial Automotive Display |
Product Description
AUO 7.0 INCH A070VTN06.4 800*600 50 pins LCD SCREEN
A070VTN06.4 Product details :
| AUO LCD SCREEN A070VTN06.4 | |
| Panel Brand | AUO |
| Model Name | A070VTN06.4 |
| Screen size | 7.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600, SVGA,134PPI |
| Pixel Format | RGB triangle |
| Display size | 154.08(W)×85.92(H) mm |
| Outline Size | 164.9(W)×100(H) ×5.9(D) mm |
| Bezel Opening | 157.1(W)×90.92(H) mm |
| Brightness | 500 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 75/75/55/65 (Typ.)(CR≥10) |
| Responding | 25 (Typ.)(Tr+Td) ms |
| Number of | 262K/16.7M, 50% NTSC |
| Backlight type | 3S3P WLED, 50K hours, no driver |
| Screen weight | 150±15g |
| Refresh rate | 60Hz |
| Application | Industrial Automotive Display |
| Touch function | No touch |
| Signal Interface | 50 pins Parallel RGB (1 ch, 8-bit), FPC |
| Supply voltage | 3.3/10.4/16.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Maximum | Working temperature: -30 ~ 85 °C; Storage temperature: -30 ~ 85 °C |
| AUO 7.0 INCH A070VTN06.4 800*600 50 pins LCD SCREEN | |
A070VTN06.4 Attention:
Please check your computer model, resolution and screen specification before placing an order to ensure that our products match your model. If you are not sure what your screen specification is, please contact us in time. We will contact you within 24 hours.
A070VTN06.4 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
A070VTN06.4 Return:
1.Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
2.Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
A070VTN06.4 Other:
1. We are not responsible for any duties or import duties.
2: All emails will be answered within 24 hours. If you do not hear back from us, please resend your email and we will reply to you. Thank you very much!
A070VTN06.4 FAQ:
Q: Can you tested the A070VTN06.4 before shipping ?
A: Of course , our lcd panel G104XVN01.0 was Strictly tested before shipping.
Q: How to order AUO A070VTN06.4 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel A070VTN06.4 I received can't work ?
A: AUO A070VTN06.4 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
A070VTN06.4 Shipping and Package :
