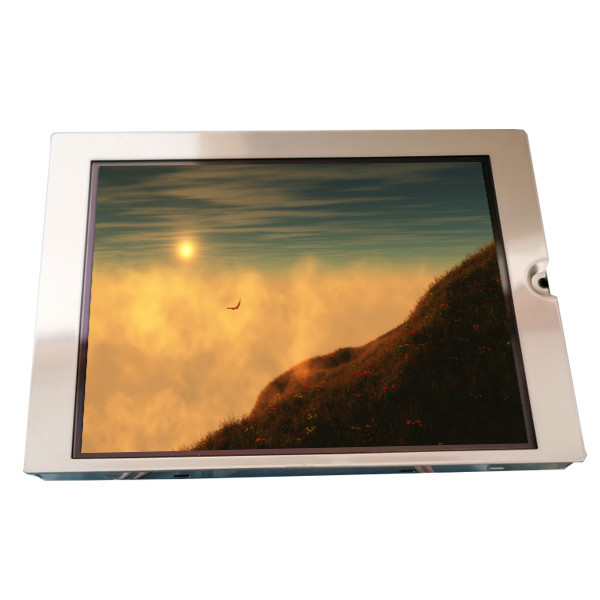

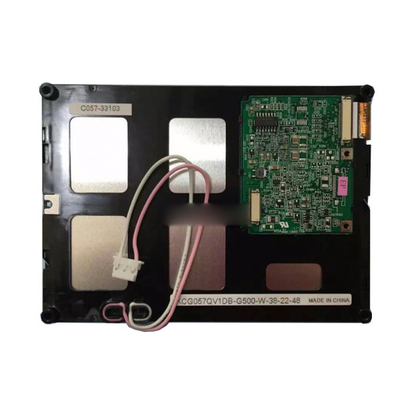

5.7 inch LCD Display Module LCD Screen KCG057QV1DB-G500 for Kyocera
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCG057QV1DB-G500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCG057QV1DB-G500 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA 70PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Bezel Opening: | 119.4(W)×90.6(H) Mm | Outline Dim.: | 144(H)×104.8(V)×13.2(D) Mm |
| Weight: | 175g | Designed For: | Industrial |
Product Description
5.7 inch LCD Display Module LCD Screen KCG057QV1DB-G500 for Kyocera
KCG057QV1DB-G500 Product details :
| Kyocera LCD SCREEN KCG057QV1DB-G500 | |
| manufacturer | Kyocera |
| Model Name | KCG057QV1DB-G500 |
| screen size | 5.7 inch |
| Screen type | LCM , CSTN-LCD |
| Resolution | 320(RGB)×240 (QVGA) 70PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 115.2 × 86.4 (H×V) |
| physical dimension | 144 × 104.8 × 13.2 (H×V×D) |
| Visual size | 119.4 × 90.6 (H×V) |
| surface treatment | Glare (Haze 0%) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 55 : 1 (Typ.) (TM) |
| Optical mode | STN, Normally Black, Transmissive |
| Viewing angle | 50/50/20/35 (Typ.)(CR≥2) |
| Responding time | 180/170 (Typ.)(Tr/Td) ms |
| Color Depth | Color 38% NTSC |
| Backlight type | 1 pcs CCFL , 75K hours , Optional |
| Mass | 175g |
| Apply to | Industrial |
| Refresh rate | 75Hz |
| Touch function | No touch |
| signal system | Parallel Data (8-bit) , 20 pins Connector |
| Supply voltage | 3.3/5.0V (Typ.)(VDD) |
| Maximum rating | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| 5.7 inch LCD Display Module LCD Screen KCG057QV1DB-G500 for Kyocera | |
KCG057QV1DB-G500 Payment:
1: We accept Alipay, PayPal, Western Union, TT here
2: All major credit cards are accepted through secure payment processor ESCROw
3:Please make sure you read the entire description and agree to the transaction before buying.
KCG057QV1DB-G500 Shipping and Package :
KCG057QV1DB-G500 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
For faster delivery,please contact us for express details.
2.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.
KCG057QV1DB-G500 Warranty:
1: we will provide 90 days warranty.
2: Buyers are only responsible for the return shipping fees for warranty items. (In most cases, buyers will only have to return the problem components rather than the entire package.)
3:Before returning items, please make sure you get to our return address, and write“gift”on the delivery sheet. Please use regular postal service and give us the tracking number. Once we receive the items, we will repair them of exchange them asap.
KCG057QV1DB-G500 Returns:
1: If the item is returned in its original state, it will receive a full refund.
2: No refund for damaged or missing parts.
KCG057QV1DB-G500 FAQ:
Q: How to order Kyocera KCG057QV1DB-G500 ?
A: We accept the T/T , Western union , paypal .
Q: How long the warranty of KCG057QV1DB-G500 ?
A: 90 days .
Q: Can you declared low value for my order KCG057QV1DB-G500 when shipping?
A: Yes, Pls leave the value you want .
Q: What happen if the lcd panel KCG057QV1DB-G500 I received can't work ?
A: Our KCG057QV1DB-G500 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
