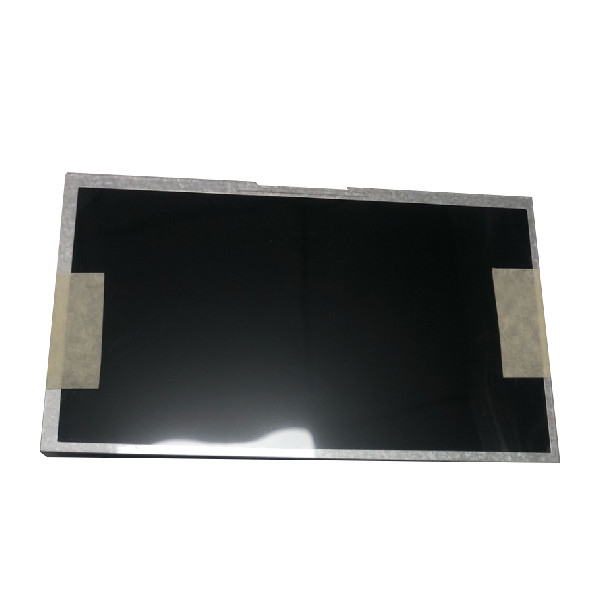

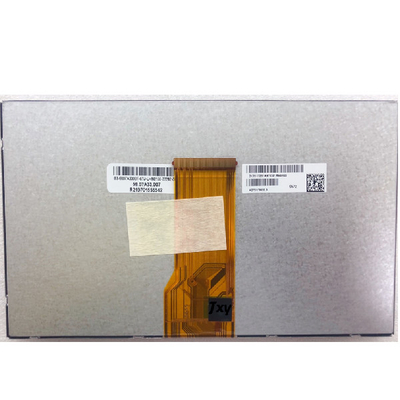

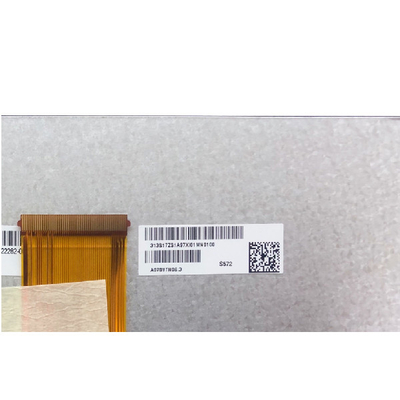

AUO A070VTN06.3 7 inch 800*600 50 pinslcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070VTN06.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070VTN06.3 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 134PPI | Active Area: | 154.08(W)×85.92(H) Mm |
| Outline Size: | 164.9 × 100 × 6 (H×V×D) | Brightness: | 670 Cd/m² (Typ.) |
| Response: | 25 (Typ.)(Tr+Td) Ms | Application: | Automotive Display |
Product Description
AUO A070VTN06.3 7 inch 800*600 50 pinslcd panel
A070VTN06.3 Product details :
| AUO LCD SCREEN A070VTN06.3 | |
| Panel Brand | AUO |
| Model Name | A070VTN06.3 |
| screen size | 7.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 154.08(W)×85.92(H) mm |
| Outline(mm) | 164.9 × 100 × 6 (H×V×D) |
| Visual size | 157.1(W)×90.92(H) mm |
| Brightness | 670 (Typ.) |
| Contrast | 500:1 (Typ.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 60/60/40/60 (Typ.)(CR≥10) |
| Responding | 25 (Typ.)(Tr+Td) ms |
| Number of | 16.7M, 53% NTSC |
| Backlight | 3S3P WLED , 10K hours , No Driver |
| Screen weight | 150g (Typ.) |
| Apply to | 16.7M |
| Used for | Automotive Display |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| Supply voltage | 3.3/10.4/16.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Maximum | Working temperature: -30 ~ 85 °C; Storage temperature: -30 ~ 85 °C |
| AUO A070VTN06.3 7 inch 800*600 50 pinslcd panelC | |
A070VTN06.3 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
A070VTN06.3 About the shipping:
The recipient must be full name or company name.We use Aliexpresss standard transport EMS DHL, fedex, etc. You can choose the next order. if you want to quickly get parcel. Recommend the use of DHL or by EMS, if you choose the DHL transport. Some remote address DHL needs additional remote address for service. Fees paid by the buyer. Customs clearance fee, if any, shall be borne by the buyers.
After completion of the payment, the goods will be sent 1-3 working days. (part of the product according to the inventory needs more days)
A070VTN06.3 About the goods:
Receive delivery company products, please check whether the parcel in good face to face. If damaged packaging or product damage, please refuse and ask the photos to prove it. Photos are divided into two parts, divided into two parts. A customer himself as evidence, the other a Courier company as a third party. Then when we received the Courier company send us the pictures of damaged products, we will find out is responsible for the damage to the product of the case. No third party evidence we can't pay for
A070VTN06.3 About the return:
Customers can be in within 90 days after receipt of the goods to replace the same product, when determine the defective. When the replacement of different products, customers are regarded as two independent trading, return and purchase.
All without defects, do not need to order, error screen, screen return original goods cost 20% restocking fee will be charged. Return of the freight shall be borne by the buyers.
Return of the goods, please keep the original packing sound
If you have any questions, please don't open dispute, don't give us bad review. We will do our best to solve the problem and provide good after-sales service. Please keep in touch with us
A070VTN06.3 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
A070VTN06.3 FAQ:
Q: How to order lcd screen A070VTN06.3 ?
A: We accept the T/T , Western union , paypal .
Q: what's the warranty of A070VTN06.3 ?
A: 90 days.
Q: What happen if the AUO A070VTN06.3 I received can't work ?
A: Our lcd panel A070VTN06.3 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low price of my A070VTN06.3 lcd display when shipping?
A: Yes , please inform us the value you want .
