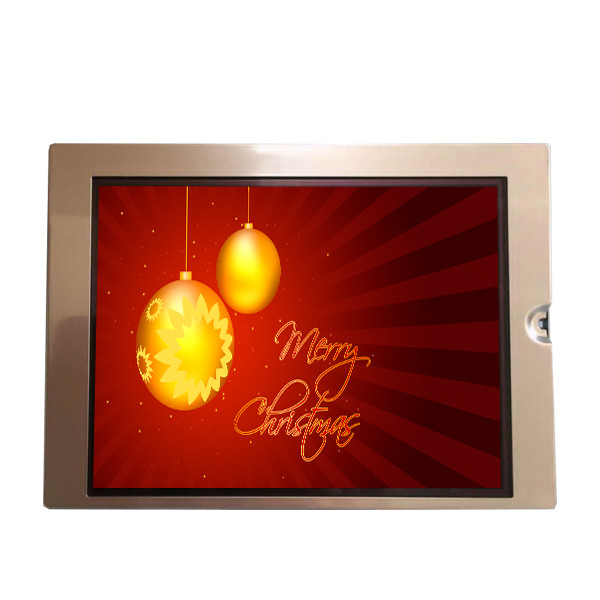

Kyocera 320*240 tft lcd screen 5.7 Inch lcd monitor CCFL KCG057QV1DB-G88 lcd module
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCG057QV1DB-G88 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCG057QV1DB-G88 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA 70PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 115.2(W)×86.4(H) Mm | Operating Mode: | STN, Normally Black, Transmissive |
| Support Color: | Color | Designed For: | Industrial |
Product Description
Kyocera 320*240 tft lcd screen 5.7 Inch lcd monitor CCFL KCG057QV1DB-G88 lcd module
KCG057QV1DB-G88 Product details :
| Kyocera LCD SCREEN KCG057QV1DB-G88 | |
| manufacturer | Kyocera |
| Model Name | KCG057QV1DB-G88 |
| screen size | 5.7 inch |
| Screen type | CSTN-LCD, LCM |
| Resolution | 320(RGB)×240 [QVGA] 70PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 115.2(H)×86.4(V) mm |
| surface treatment | Glare (Haze 0%) |
| Optical mode | STN, Normally Black, Transmissive |
| Support Color | Color |
| Light Source | CCFL [1 pcs] , Optional |
| Apply to | Industrial |
| Refresh rate | 75Hz |
| Maximum rating | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Kyocera 320*240 tft lcd screen 5.7 Inch lcd monitor CCFL KCG057QV1DB-G88 lcd module | |
KCG057QV1DB-G88 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges
which are not included in the price or freight of the products and are for the responsibility of the recipient.
KCG057QV1DB-G88 Shipping and Package :
KCG057QV1DB-G88 Shipping Information:
We will ship out your items within 1-5 business days after the payment is cleared.
Some items we supply free shipping with HK/China post, if u need it urgent, pls contact me.
Standard shipping using international Airmail, Items ship from Hongkong and it takes 7-14 working days (2-3 weeks) to receive for most area.
If you do not receive item within 30 working days (5 weeks), please contact us to investigate the case.(Brazil. Italy. 5~8 weeks)
KCG057QV1DB-G88 warranty:
1: we will provide 90 days warranty.
2: Buyers are only responsible for the return shipping fees for warranty items. (In most cases, buyers will only have to return the problem components rather than the entire package.)
3:Before returning items, please make sure you get to our return address, and write“gift”on the delivery sheet. Please use regular postal service and give us the tracking number. Once we receive the items, we will repair them of exchange them asap.
KCG057QV1DB-G88 FAQ:
Q: What happen if the lcd panel KCG057QV1DB-G88 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: When will my order KCG057QV1DB-G88 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
