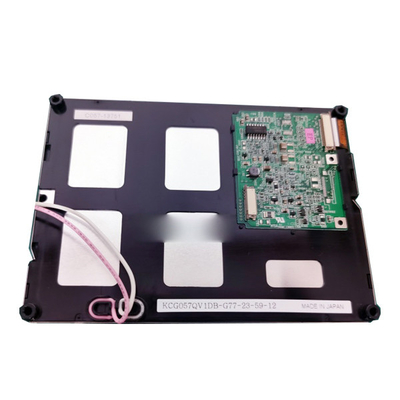

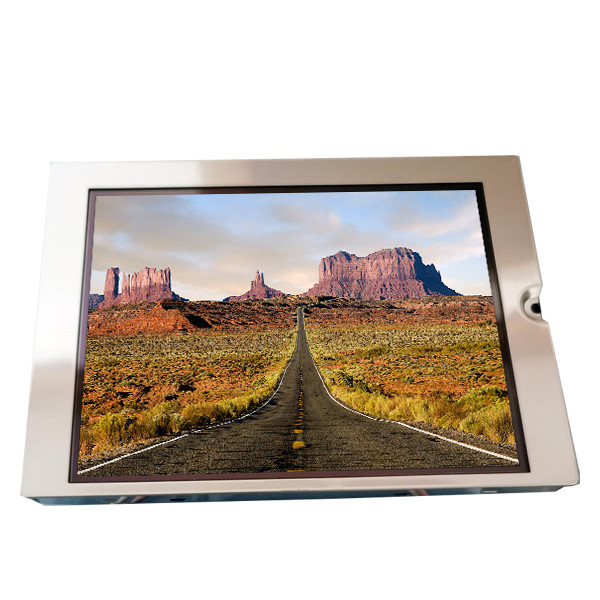

5.7 inch LCM 320*240 KCG057QV1DB-G77 CSTN-LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCG057QV1DB-G77 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCG057QV1DB-G77 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA 70PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Bezel Opening: | 119.4(W)×90.6(H) Mm | Outline Size: | 144(W)×104.8(H) ×13.2(D) Mm |
| Panel Weight: | 175g (Typ.) | Application: | Industrial |
Product Description
5.7 inch LCM 320*240 KCG057QV1DB-G77 CSTN-LCD Screen Panel
KCG057QV1DB-G77 Product details :
| kyocera LCD SCREEN KCG057QV1DB-G77 | |
| Panel Brand | kyocera |
| Panel Model | KCG057QV1DB-G77 |
| Panel Size | 5.7 inches |
| Panel Type | LCM, CSTN-LCD |
| Resolution | 320(RGB)×240 QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2 × 86.4 mm (H×V) |
| Bezel Opening | 119.4 × 90.6 mm (H×V) |
| Outline Size | 144 × 104.8 × 13.2 mm (H×V×D) |
| Brightness | 380 cd/m² (Typ.) |
| Contrast Ratio | 60 : 1 (Typ.) [Transmission] |
| Viewing Angle | 55/55/60/75 (Typ.)(CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Response Time | 450 (Typ.)(Tr+Td) ms |
| Display Colors | Fake Colo |
| Lamp Type | 1 pcs CCFL , 75K hours , Without Driver |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 175g (Typ.) |
| Application | Industrial |
| Signal Interface | Parallel Data (8-bit) , terminal, 20 pins |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| 5.7 inch LCM 320*240 KCG057QV1DB-G77 CSTN-LCD Screen Panel | |
KCG057QV1DB-G77 Payment:
1: We accept Alipay, PayPal, Western Union, TT here
2: All major credit cards are accepted through secure payment processor ESCROw
3:Please make sure you read the entire description and agree to the transaction before buying.
KCG057QV1DB-G77 Shipping and Package :
KCG057QV1DB-G77 Delivery:
We can send out the items within 7 working days after payment confirmation.
The shipping way depends on the shipping cost which you choose, so please choose a proper shipping way according to your own situation.
If your place are located in a remote area, it may cost some extra charges, and we would let you know if the shipping cost is changed.
KCG057QV1DB-G77 About the return:
Customers can be in within 90 days after receipt of the goods to replace the same product, when determine the defective. When the replacement of different products, customers are regarded as two independent trading, return and purchase
All without defects, do not need to order, error screen, screen return original goods cost 20% restocking fee will be charged. Return of the freight shall be borne by the buyers.
Return of the goods, please keep the original packing sound
If you have any questions, please don't open dispute, don't give us bad review. We will do our best to solve the problem and provide good after-sales service. Please keep in touch with us
KCG057QV1DB-G77 Customer services:
Please contact us if you have any questions, we will try our best to provide you best services.
KCG057QV1DB-G77 FAQ:
Q: If I order KCG057QV1DB-G77 now,when will you ship the goods ?
A: The order will be shipped within 1-2 working days after received your payment.
Q: How to make payment for KCG057QV1DB-G77 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of Sharp KCG057QV1DB-G77 ?
A: we will give you tracking number then you can trace your order form website.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
