LCD Laptop Screen

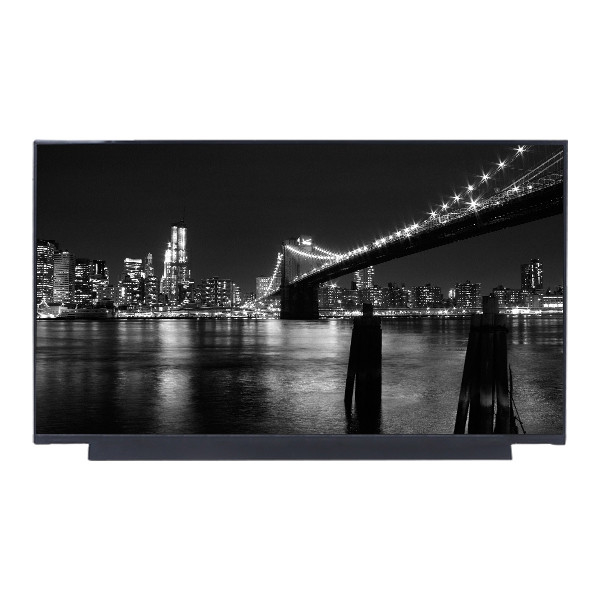

LM156LFGL01 15.6 inch 120HZ EDP 40pin FHD IPS 350mm laptop lcd screen

All Category

Floor Standing Digital Signage

LM156LFGL01 15.6 inch 120HZ EDP 40pin FHD IPS 350mm laptop lcd screen

Brand Name:	PANDA
Model Number:	LM156LFGL01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model P/N:

LM156LFGL01

Diagonal Size:

15.6"

Resolution:

1920(RGB)×1080, FHD 141PPI

Active Area:

344.16(W)×193.59(H) Mm

Outline Size:

350.66(W)×216.245(H) ×3.2(D) Mm

Brightness:

250 Cd/m² (Typ.)

Shape Style:

Slim (PCBA Flat, T≤3.2mm)

Application:

Laptop / Gaming

Supply Ability:

100000 Unit/Units per Month

Highlight:

laptop lcd replacement

lenovo screen replacement

LCD Screen Display

Product Description

LM156LFGL01 15.6 inch 120HZ EDP 40pin FHD IPS 350mm laptop lcd screen

LM156LFGL01 Product details :

PANDA LCD Screen LM156LFGL01 (NCP0036)
Manufacturer	PANDA
Model Name	LM156LFGL01 (NCP0036)
Screen Size	15.6 inch
Screen Type	LCM , Oxide TFT-LCD
Pixel Number	1920(RGB)×1080 (FHD) 141PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	344.16 × 193.59 (H×V)
Outline(mm)	350.66 × 216.245 × 3.2 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Tf) ms
Good View at	Symmetry
Work Mode	FFS, Normally Black, Transmissive
Color Depth	262K 45% NTSC
Backlight	9S5P WLED , 15K hours , With LED Driver
Outline Shape	Slim (PCBA Flat, T≤3.2mm)
Used for	Laptop / Gaming
Frame Rate	120Hz
Touch Panel	Without
Interface Type	eDP (4 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LM156LFGL01 15.6 inch 120HZ EDP 40pin FHD IPS 350mm laptop lcd screen

LM156LFGL01 Attention:

Please check your computer model, resolution and screen specification before placing an order to ensure that our products match your model. If you are not sure what your screen specification is, please contact us in time. We will contact you within 24 hours.

LM156LFGL01 Shipping and Package :

LM156LFGL01 15.6 inch 120HZ EDP 40pin FHD IPS 350mm laptop lcd screen 0

LM156LFGL01 Shipping:

1. We use aliexpresss stand to transport EMS DHL FEDEX, etc.

2. we will ship by air mail within 1-3 working days after the end of payment. We ship packages all over the world, please make sure your mailing address is correct.

3. Generally, it is delivered within 15-30 working days. Because our goods are sent to all over the world, some countries may deliver goods later. In this case, we hope the customers understand.

LM156LFGL01 About the goods:

Receive delivery company products, please check whether the parcel in good face to face. If damaged packaging or product damage, please refuse and ask the photos to prove it. Photos are divided into two parts, divided into two parts. A customer himself as evidence, the other a Courier company as a third party. Then when we received the Courier company send us the pictures of damaged products, we will find out is responsible for the damage to the product of the case. No third party evidence we can't pay for

LM156LFGL01 Other policies:

If you need a lot of quantity, please contact us, will give you a favorable price.

We are not responsible for all taxes and import duties

Due to the time difference, all emails will be reply within 24 hours. Thank you for your understanding!

LM156LFGL01 FAQ:

Q: How long is the warranty of LM156LFGL01 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LM156LFGL01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LM156LFGL01 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods LM156LFGL01 by credit card ?

A: Yes!you can use your credit card through your Paypal account.
