Car CD/DVD Navigation 7.0 inch A070VTN06.0 LCD Panel For Car Auto Replacement
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070SN02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070SN02 V0 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 143PPI | Active Area: | 141.6(H)×106.2(V) Mm |
| Outline Dim.: | 154(H)×119.2(V)×5.08(D) Mm | Luminance: | 250 Cd/m² (Typ.) |
| Display Colors: | 16.2M , 50% NTSC | Designed For: | Digital Photo Frame Portable DVD Player |
Product Description
Car CD/DVD Navigation 7.0 inch A070VTN06.0 LCD Panel For Car Auto Replacement

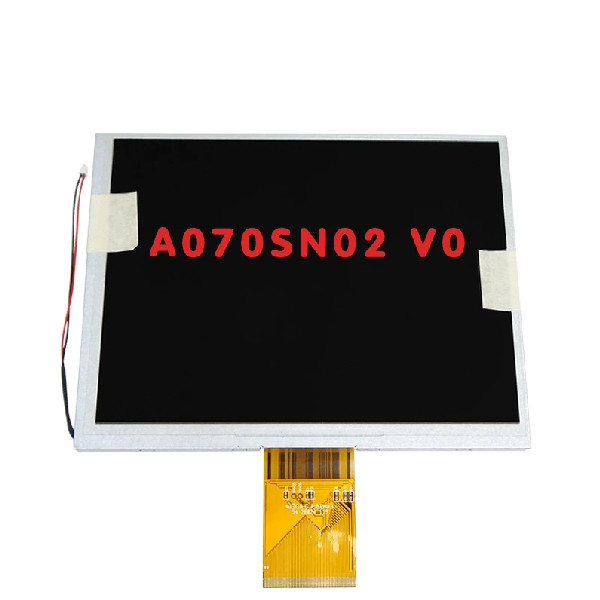

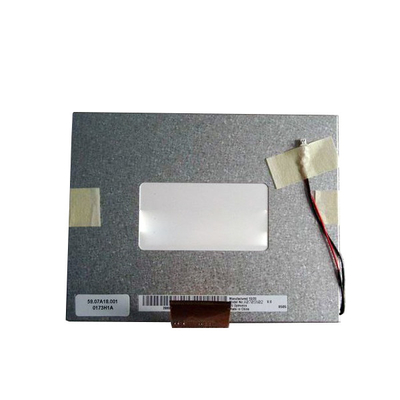

A070SN02 V0 Product details :
| AUO LCD SCREEN A070SN02 V0 | |
| Panel Brand | AUO |
| Panel Model | A070SN02 V0 |
| Panel Size | 7.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800×600(RGB) SVGA 143PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 141.6(H)×106.2(V) mm |
| Bezel Opening | 143.6(H)×108.2(V) mm |
| Outline Size | 154(H)×119.2(V)×5.08(D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing Angle | 70/70/50/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 4/16 (Typ.)(Tr/Td) ms |
| Display Colors | 16.2M , 50% NTSC |
| Lamp Type | WLED [3S6P] , 10K hours, no driver |
| Frequency | 60Hz |
| Designed For | Digital Photo Frame Portable DVD Player |
| Touch Panel | Without |
| Signal Interface | 60 pins TTL (1 ch, 8-bit) + SPI , FPC |
| Input Voltage | 3.3/5/-5/14/-14V (Typ.)(VDD/VDPA/VDNA/VGH/VGL) |
| Environment | Operating temperature: -10 ~ 60 °C ; Storage temperature: -20 ~ 70 °C |
| Car CD/DVD Navigation 7.0 inch A070VTN06.0 LCD Panel For Car Auto Replacement | |
A070SN02 V0 Please read the following before placing an order
Hello friend! Welcome to our shop! Friends, if you don’t know if our screen can fit your machine. Please remove the screen of the reader first, then take a picture of the screen and send it to us,We will send us photos through you to help you determine whether our screen is compatible with your machine. When you contacted us, we did not reply to you in time, please understand. Due to the time difference, we cannot reply you in time.
A070SN02 V0 What should I do after receiving the package?
Friends, when you receive the package, first you need to check whether the outer packaging of the package is intact. If you find that the outer packaging of the package is obviously damaged, please take a picture of the damaged area; then open the package and check The screen inside the package is intact. If the screen is damaged, please take a picture, send it to us, and we will handle the problem for you.
A070SN02 V0 Things to note when installing the screen
1. Before installing the screen, please disconnect the battery of the machine, then install the screen, connect all the cables, and finally re-install the battery of the machine and turn on the machine for testing.
2. When installing other parts of the machine, clean up the debris from the parts to avoid damage to the screen when the machine is assembled.
A070SN02 V0 Delivery time
We will send the package within 1-3 working days after the order payment is completed. If the screen you purchased is out of stock, we will notify you in time. Normal parcels will be delivered in about a month. If you have not received your parcel after waiting for a month and a half,
please contact us and we will handle it for you!
A070SN02 V0 FAQ:
Q: Can I pay my goods A070SN02 V0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of AUO A070SN02 V0 ?
A: we will give you tracking number then you can trace your order form website.
Q: How long will I receive my goods of A070SN02 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of AUO A070SN02 V0 ?
A: Of course!If you make a large order, we will give you a discount.
A070SN02 V0 Shipping and Package :
