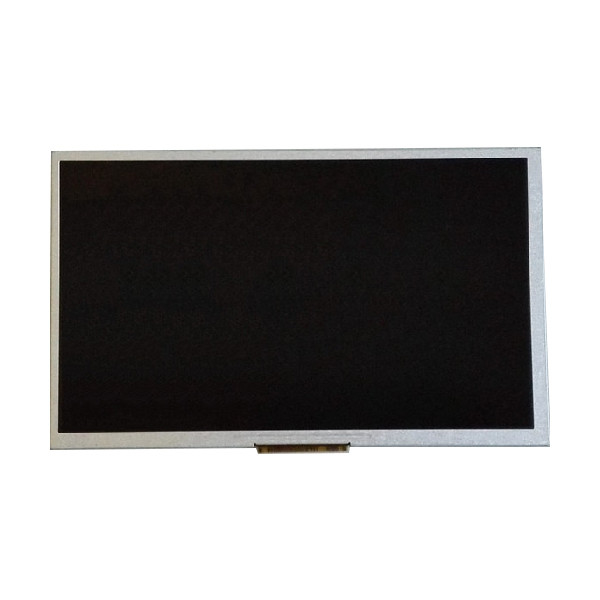

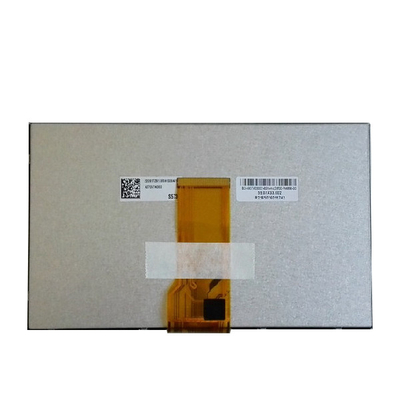

800x480 AUO 50-pin 7 inch TFT LCD Screen Display A070VTN06.0
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070VTN06.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A070VTN06.0 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 143PPI | Active Area: | 164.9(W)×100(H) ×6(D) Mm |
| Outline Dim.: | 164.9(W)×100(H) ×6(D) Mm | Luminance: | 250 Cd/m² (Typ.) |
| Responding: | 25 (Typ.)(Tr+Td) Ms | Designed For: | Automotive Display |
Product Description
800x480 AUO 50-pin 7 inch TFT LCD Screen Display A070VTN06.0
A070VTN06.0 Product details :
| AUO LCD SCREEN A070VTN06.0 | |
| Panel Brand | AUO |
| Model Name | A070VTN06.0 |
| Screen size | 7.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600, SVGA,134PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 154.08(W)×85.92(H) mm |
| Outline Size | 164.9(W)×100(H) ×6(D) mm |
| Visual size | 157.1(W)×90.92(H) mm |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 60/60/40/60 (Typ.)(CR≥10) |
| Responding | 25 (Typ.)(Tr+Td) ms |
| Number of | 150g (Typ.) |
| Backlight type | WLED [3S9P], 10K hours, no driver |
| Screen weight | 150g (Typ.) |
| Apply to | 16.7M |
| Refresh rate | 60Hz |
| Application | Automotive Display |
| Touch function | No touch |
| Signal system | 50 pins Parallel RGB (1 ch, 8-bit), FPC |
| Supply voltage | 3.3/10.4/16.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Maximum | Working temperature: -30 ~ 85 °C; Storage temperature: -30 ~ 85 °C |
| 800x480 AUO 50-pin 7 inch TFT LCD Screen Display A070VTN06.0 | |
A070VTN06.0 Kindly reminder:
Usually the LED panel is a compatible model, it may not be exactly the same as your original model. Usually the LED panel we send is a compatible model. But we can make sure it fits 100% of your original model.
Shipment
Usually we will prepare and ship your goods within 5 business days.
The shipping charge doesn't include the import tax,buyer is responsible for custom duties.
Pls check if your item is in good condition upon receipt of it.
A070VTN06.0 Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
A070VTN06.0 FAQ:
Q: If I order A070VTN06.0 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for A070VTN06.0 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of A070VTN06.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of A070VTN06.0 ?
A: Of course!If you make a large order, we will give you a discount.
