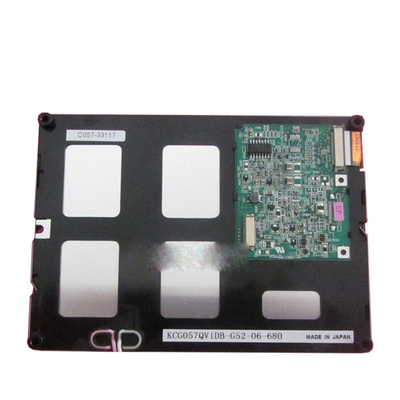

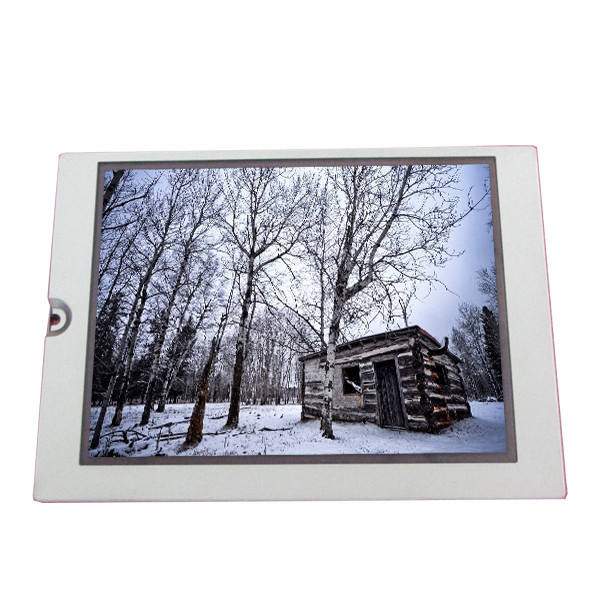

Kyocera LCD KCG057QV1DB-G52 5.7 inch 320(RGB)×240 new original LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | KCG057QV1DB-G52 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | KCG057QV1DB-G52 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA 70PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Bezel Opening: | 119.4(W)×90.6(H) Mm | Outline Dim.: | 144(H)×104.8(V)×13.2(D) Mm |
| Weight: | 175g (Typ.) | Designed For: | Industrial |
Product Description
Kyocera LCD KCG057QV1DB-G52 5.7 inch 320(RGB)×240 new original LCD Screen Display Panel
KCG057QV1DB-G52 Product details :
| kyocera LCD SCREEN KCG057QV1DB-G52 | |
| Panel Brand | kyocera |
| Panel Model | KCG057QV1DB-G52 |
| Panel Size | 5.7 inches |
| Panel Type | LCM, CSTN-LCD |
| Resolution | 320(RGB)×240 QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2 × 86.4 mm (H×V) |
| Bezel Opening | 119.4 × 90.6 mm (H×V) |
| Outline Size | 144 × 104.8 × 13.2 mm (H×V×D) |
| Surface | Glare (Haze 0%) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 60 : 1 (Typ.) [Transmission] |
| Viewing Angle | 50/50/20/35 (Typ.) (CR≥2) |
| Display Mode | STN, Normally Black, Transmissive |
| Response Time | 180/170 (Typ.)(Tr/Td) ms |
| Display Colors | Fake Color |
| Lamp Type | 1 pcs CCFL , 75K hours, optional |
| Frequency | 75Hz |
| Touch Screen | Without |
| Panel Weight | 175g (Typ.) |
| Used for | Industrial |
| Signal Interface | Parallel Data (8-bit) , Connector 20 pins |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
| Environment | Operating temperature: 0 ~ 60 °C ; Storage temperature: -20 ~ 60 °C |
| Kyocera LCD KCG057QV1DB-G52 5.7 inch 320(RGB)×240 new original LCD Screen Display Panel | |
KCG057QV1DB-G52 NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
KCG057QV1DB-G52 Shipping and Package :
KCG057QV1DB-G52 SHIPPING:
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-3 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
Packaging: Antistaagtic bag+bubble bag+bubble chamber+suitable hard carton.
KCG057QV1DB-G52 After-sales service:
This product warranty for 6 months from the date of receipt of the customer,
the human factor damage is not covered by the warranty
the seller is not covered by the warranty shipping costs
the refund will be return after the return parcel received.all goods are labeling
identification do not tear, Otherwise will be no warranty, thank you for your understanding.
KCG057QV1DB-G52 FAQ:
Q: Do you accept sample orders for KCG057QV1DB-G52 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of KCG057QV1DB-G52 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for KCG057QV1DB-G52 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty of KCG057QV1DB-G52 ?
A: 90 days warranty .
